| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Automatic Grade: | Automatic |
|---|---|---|---|
| Voltage: | 220V 50/60Hz | Bag Size: | (w) 80-200 (L)50-300 Mm |
| Max Film Width: | 420mm | Film Thickness: | 0.04-0.10 Mm |
| Pulling Film Type: | Dual Belt Tension Membran | Air Consumption: | 0.4m3/min 0.6MPa |
| High Light: | Vertical Frozen Food Packaging Machine,Automatic Frozen Food Packaging Machine,1500ml Frozen Food Packaging Machine |
||

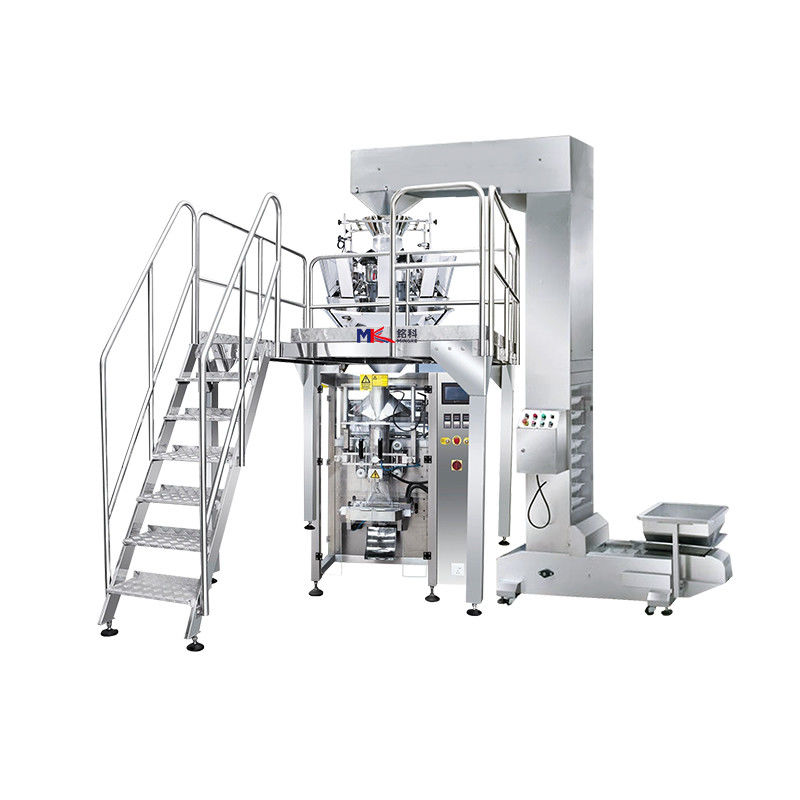

Stand Up Pouch Vertical Frozen Food Packaging Machine
BECAUSE STABILITY, SO ACCURATE
High quality 304 stainless steel material, high precision sensor weighing, average material falling because of the amplitude is stable fully automatic adjustment.
UNIQUE ORIGINALITY
To make the bag sealing good and look beautiful

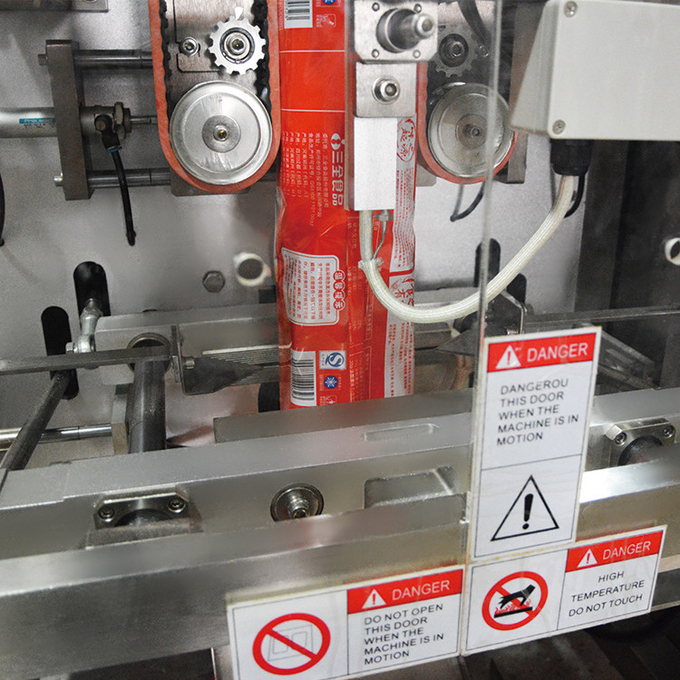

HIGH-QUALITY TRANSMISSION
Vertical film pulling parts adopt high quality wheel, pull smoothly, pre-long life time
UNIQUE AND HIGH QUALITY SEALING MOULD
High quality 304ss, no easy rust, longer lif-time, precise sealing, beautiful bags
HIGH-QUALITY LINKED ROLL FILM AXIS
He use of multi-linked film axis coordinate the whole pull fim links,adapt to more film material, drawing the fim more smoothly
ORIGINAL MOTOR AND PRINTER
Adopt high quality parts, original motor/printer, photoelectric eye positioning, make sure the accurate printing
SIEMENS TOUCHING SCREEN
Adopt import Siemens touching screen, multilingual interface, simple and clear, easier and convenient to operate
product parameters
| Packaging speed | 10-80bags/min |
| Bag size(mm) |
L:50-300 W:80-200 |
| Bab type | Pillow bag,stand up pouch,pillow with hole pouch,continuous bag |
| Measuring range(ml) | 150-1500 |
| Max film width(mm) | 420 |
| Film thickness(mm) | 0.04-0.10 |
| Air comsumption | 0.4m3/min |
| Air Pressure | 0.6MPa |
| Power source | 2.5KW/220V 50-60HZ |
| Weight(kg) | 450 |
| Overall size(mm) | 1400*970*1700 |
| Packaging material | Heat-sealable composite film (OPP/CPP OPP/CE MST/PE PET/PE) |
Feature:
1. Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
2. precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
3. minimize the loss with complete automatic warn protection function;
4. supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma
5. the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
1. Q : Which packing machine is suitable for us ?
A : Dear, before quoting, please kindly consult us and providing:
1.your product name,product picture.
2.your bag size,such as bag width and bag height.
3.ideal bag shape.
For there is over 100 kinds of packing machine,different on bag size.
In order to recommend u the best,we need know that information.
If u just start this business,no bag size,we can help u to find similar weight bag for your reference.
2. Q: Is that packing machine ok for our product?How to operate it?
A : If you donnot mind,you can send u sample.we will use existing packing machine to test for u.
During that time,we will take video and clearer picture for you.If chance,we can take video online and show u.
3. Q: Is that pack many bag size in the same packing machine?
A:That is the common question from our customer.Every packing machine has its range for bag length and bag width.can u send us full details,i will calculate for u and give u exact reply.
Need more machines details or videos? Please contact us directly by the way below.
