| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Packaging Material: | Metal, Paper, Plastic | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Pneumatic | Voltage: | 220V |
| Material: | SUS304 | Control: | Servo Motor |
| Film Thickness: | 25-100um | Filling Range: | 100-6000g |

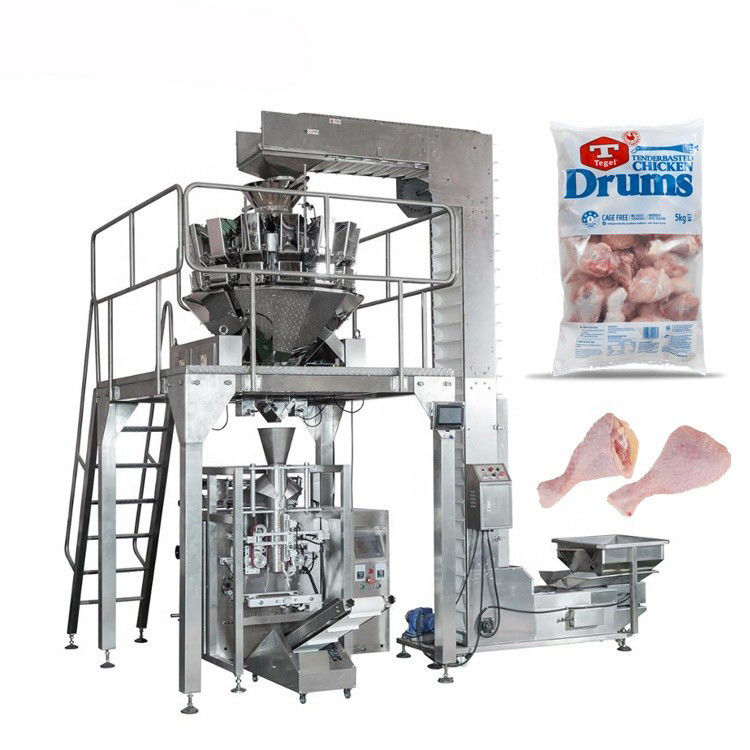

| High Light: | High Speed Frozen Food Packing Machine,6kg Frozen Food Packaging Machine,100g Frozen Food Packaging Machine |
||
Packing Machine Parameter:
| Model | Filling Range | Bag Size | Packing Speed | Machine Size | Machine Weight | Power |
| P1-420 | 100-1000g |
L:80-300mm W:60-200mm |
5-60bags/min. |
L1117*W1492*H1532mm |
500kg | 220V,50HZ,2.2KW |
| P1-520 | 100-2000g |
L:80-400mm W:60-250mm |
5-50bags/min. |
L1217*W1562*H1792mm |
600kg | 220V,50HZ,3 KW |
| P1-720 | 100-5000g |
L:80-480mm W:60-350mm |
5-40bags/min. | L1700*W1727*H1950mm | 700kg | 220V,50HZ,3.5KW |
| P1-850 | 100-6000g |
L:80-520mm W:60-415mm |
5-30bags.min. | L1800*W1827*H1962mm | 800kg | 220V,50HZ,5KW |
Packing Machine Advantages:
1. PLC computer control system, human-machine touch screen.
2. Accurate positioning, smoothly and stability running.
3. With auto alarm protection function, to minimize the loss.
4. Automatical process of measuring, feeding, filling, bag making, printing.
5. High efficiency and high packing accuracy,about ±0.5-5g deviation
6. Food grade stainless steel 304, safe and durable.
7. Easy to operate and maintain,only need one worker;
8. High packing speed, about 5-65 bags per minute.
This packing machine can not only pack granule sugar,but also widely applied for various kinds of granular such as snacks,chocolate, nuts, seeds, potato chips, peanut, nuts, dried fruit, jelly, frozen dumplings, biscuits, corn, hardware,etc.
FAQ
Q1. How long is warranty time for your machines?
-- Our warranty time is 12 months ,starts from the issue date of bill of lading.
Q2. We guarantee the below part that in the range of warranty scope.
-- Parts: servo motor, PLC, touch screen, step motor, motor controller
Q3. What after-sales service we can supply?
-- Service: we provide technician support to analyze and find out the mechanical fault by video call. Once we find out the problem parts, we will send out a replacement within 3 days.
Q4. Which part we do not supply after-sales service?
-- Spare parts are not under warranty scope. ( Refer to the spare part list ) Artificial damage is not under warranty scope(for example, broke the monitor of touch screen, Lightning damage)
Q5. What fee that customer should afford?
-- Client afford the Courier fee of parts.Oversea service is available but clients afford the tickets ,visa and accommodation.
