| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Voltage: | 220v |
| Dimension(L*W*H): | 5000*1200*1650 | Key Selling Points: | Low Noise Level |
| Product Contact Surface: | Made Of 304 Stainless Steel | Film Position: | Upper |
| Thickness Of Machine Board: | 4mm | Application: | Meat / Dumpling Frozen Food |
| High Light: | Dumpling Frozen Food Packing Machine,Pillow Bag Frozen Food Packing Machine,5.2KW Frozen Food Packaging Machine |
||

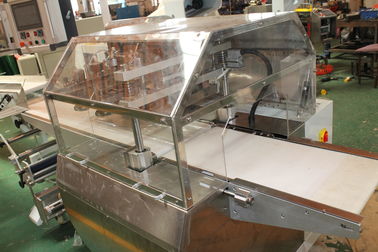

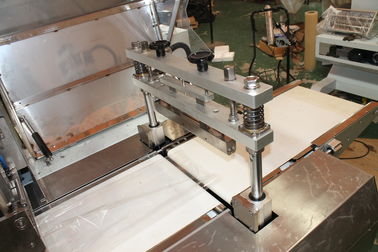

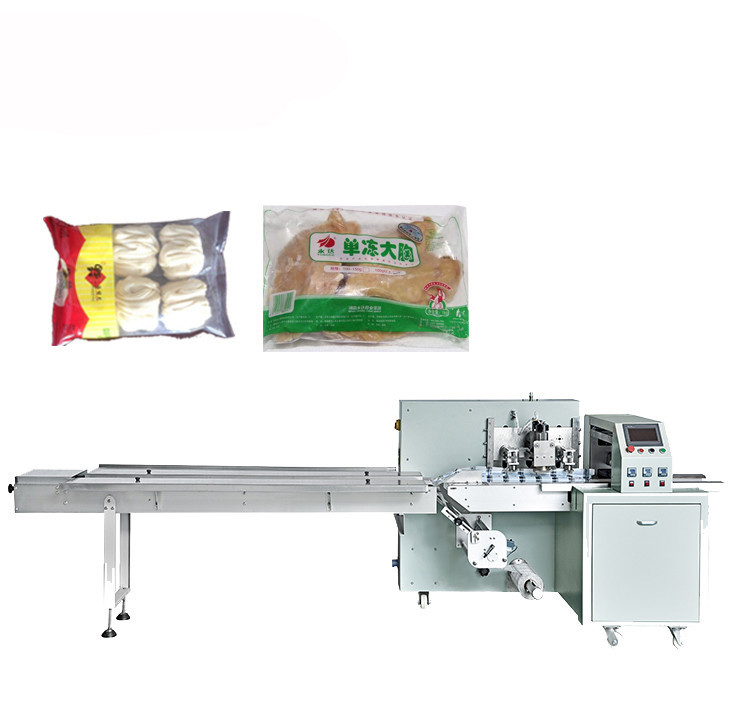

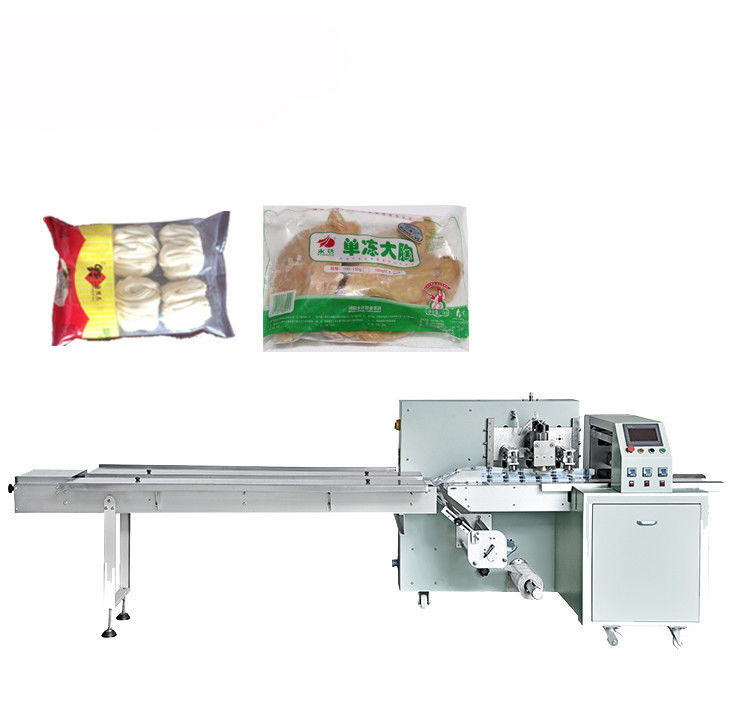

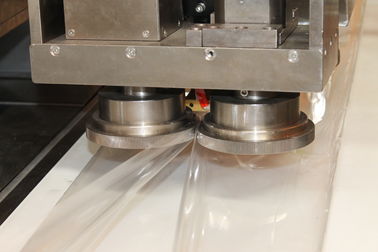

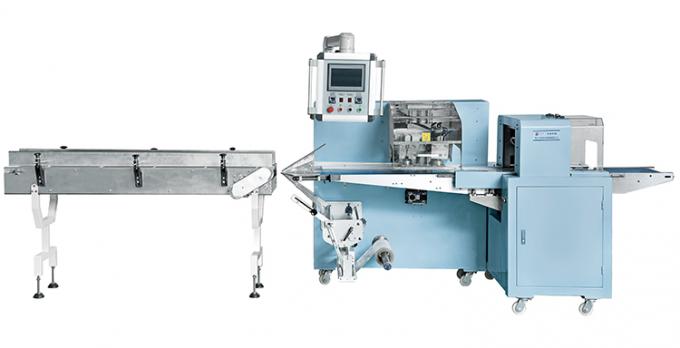

Pillow Bag Meat / Dumpling Frozen Food Packing Machine
| Output | Up to 50 products per minute Up to 40 m/min film speed Product and film characteristic may affect machine output |
| Size Range | |
| Package cut-off length | 60-6000mm |
| Product width | Max.330mm |
| Product height | Max.110mm |
| Packaging Material Reel | |
| Reel diameter | ≤300mm |
| Core diameter | ≤75mm |
| Packaging material width | Max.680mm |
| Connections | |
| Voltage | 220V,50HZ |
| Power usage | 5.2KW |
| Machine weight | 1080kg |
| Machine dimensions | L5000mm*W1200mm*H1650mm |
| Blade cut type | Box Motion/ Reciprocating |
| Motor configuration | Full servo |
| Optional Device |
date printer, auto feeder, gas charger, etc. |
| Application | Meat / Dumpling Frozen Food |
Standard features:
Special features:
| No. | Item | Qty |
| 1. | Tool box | 1pc |
| 2. | Horizontal seal heating bar | 1pc |
| 3. | Vertical seal heating bar | 1pc |
| 4. | Socket head wrench | 1set |
| 5. | Cross screwdriver | 1pc |
| 6. | Slot type screwdriver | 1pc |
| 7. | Monkey wrench | 1pc |
| 8. | Ink roll(if machine with printer) | 3pc |
| 9. | Solid-state relay | 1pc |
| 10. | Knife | 1pair |
| 11. | Pusher | 5pc |
Q1: Can you send me the installation video of this machine?
A1: Yes, please check the link for this video
Q2: What is the material of contact food/material parts?
A2: The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
Q3: Can this machine make different bag sizes?
A3: One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Q4: Does your company accept OEM?
A4: Yes, we have a professional design and technical team to accept customization.
