| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Automatic Grade: | Automatic | Voltage: | 220V |
|---|---|---|---|
| Dimension(L*W*H): | 4200*2000*3700mm | Bag Type: | Doypack |
| Packing Speed: | 20-55bags/min | Filling Range: | 50-1500ml |
| Film Material: | Laminated Film,OPP/CPP, PET/PE,ALU/PET | Machine Material: | Stainless Steel 201/314/316 |
| Machine Weight: | 650kg | ||
| High Light: | Rotary Frozen Food Packing Machine,Vertical Frozen Food Packing Machine,4200*2000*3700mm Frozen Food Packaging Machine |
||

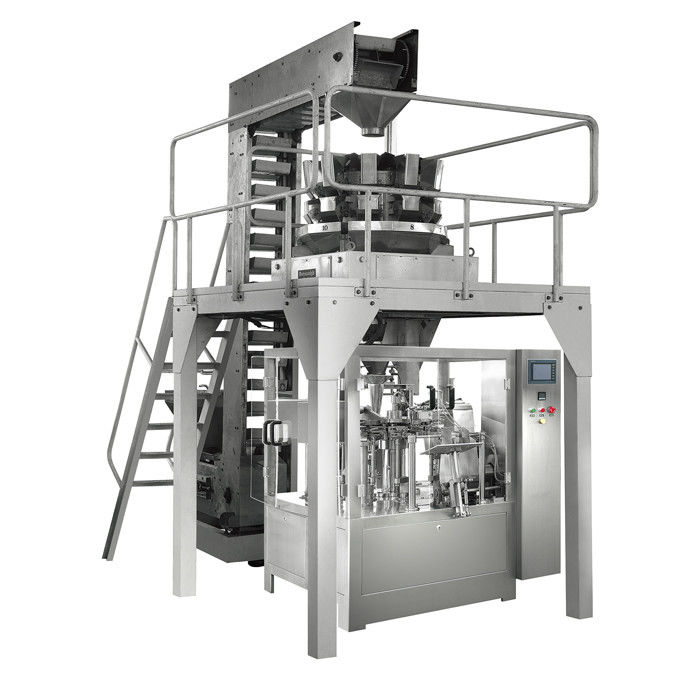

Vertical Stand Up Bag Rotary Frozen Food Packing Machine
Working Cycle:
1. Feeding Bag
2. Coding Date
3. Open Bag
4. Filling
5. First Sealing
6. Second Sealing
Application Area:
This line mainly installs rotary packing machine, combination weigher and Z-Conveyor, suitable for packing all kinds of grains and solids, such as candy, nuts, raisins, peanuts, melon seeds, potato chips, chocolate, biscuits and so on.c
Main Features:
1. Wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
3. Easy to adjust: Only needs 10 minutes to suitable for different pouches.
4. Frequency control: speed can be adjusted by frequency conversion within the range.
5. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
6. Machine alarm and stop when the inadequate air pressure.
7. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
8. Imported engineering plastic bearings, no need to oil, no contamination.
9. Oil-free vacuum pump, avoid the pollution of the production environmental.
10. The machine clamp and clamp body use 316 stainless steel.
Main technical parameters:
|
Packing Speed |
20-55bags/min (Depended on the product and filling weight) |
|
Bag Size |
W: 100-200mm L: 150-300mm |
|
Filling Range |
50-1500ml |
|
Total Power |
3.95kw |
| Voltage | 220V |
|
Bag Types |
All kinds of compound bags, such as standup bag, portable bag, zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag etc… |
|
Overall Dimensions |
4200*2000*3700mm |
| Film material | laminated film,OPP/CPP, PET/PE,ALU/PET |
| Machine material | Stainless Steel 201/314/316 |
| machine weight | 650kg |
