| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Machine Type: | Automatic Bag Forming Filling Sealing Machine | Voltage: | 220V/380V/110V |
|---|---|---|---|
| Machine Material: | Stainless Steel | Packaging Type: | Bags, Film, Pouch |
| Warranty: | 12 Months | Power: | 2.2Kw |
| Air Consumption: | 0.6m³/min | Dimension(LxWxH): | 1320x920x1392mm |
| High Light: | Puffy Food Granule Packing Machine,Automatic Granule Packing Machine,Stainless Steel Granule Packaging Machine |
||

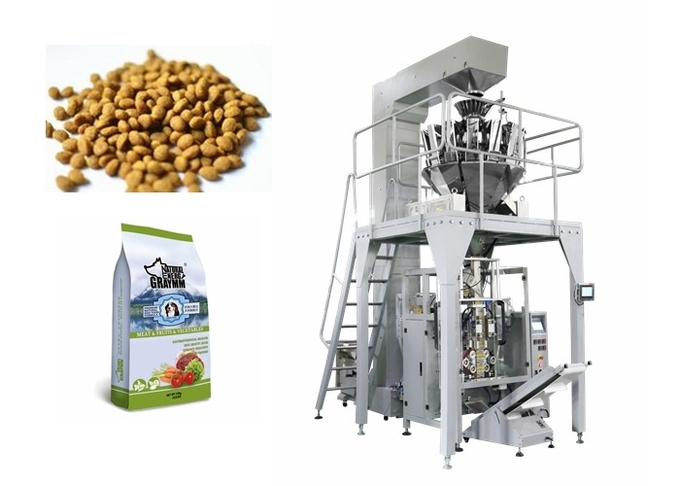

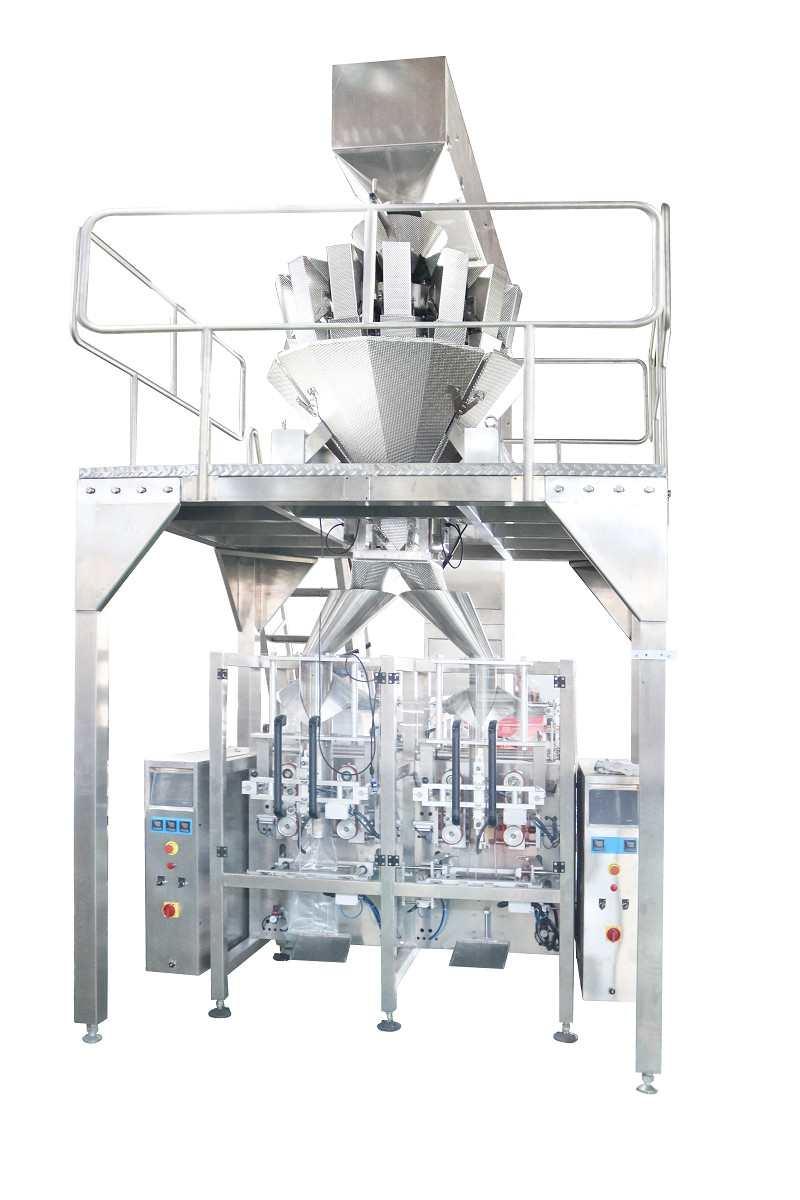

Fully Automatic Puffy Food Granule Packing Machine
Introduction:
Vertical Packing Machine is suitable for packing the high accuracy and easy fragile material, such as, puffy food, snacks, corn flakes, potato chips, peanuts, banbana chips, chocolate beans, corn grits, beans, rice, jelly, candy, pistachio, apple slices, dumpling, pet food, small hardware, medicine, etc.
Main features:
1. The packing machine with advanced design, reasonable structure, fine workmanship, stable adjustment,
2. quick and easy operation, simple maintenance, time-saving and labor-saving manpower.
3. Servo film transporting system can position accurately. High-quality synchronous transport membrane, which is stable and reliable.
4. High-precision color touch screen, convenient parameter setting.
5. Self-diagnosis function, Fault is displayed at a glance.
6. High-sensitivity fiber color tracking, so that the sealing position more accurate.
7. Temperature independent PID control, it is better for a variety of materials coated.
Technical Parameters:
| Model | SUN-420 | SUN-520 | SUN-720 |
| Speed | 5-70bags / min | 5-60bags / min | 5-60bags / min |
| Bag Length | 60-300mm | 80-400mm | 80-450mm |
| Bag Width | 80-200mm | 150-250mm | 200-350mm |
| Power | 2.2kw | 2.2kw | 3kw |
| Dimension(LxWxH) | 1320x920x1392mm | 1500x1140x1540mm | 1800x1250x1780mm |
| Voltage | 220V/380V/110V | ||
| Packaging Material | Plastic,Paper,PE. | ||
| Automatic Grade | Fully Automatic | ||
| Air Consumption | 0.6m³/min | ||
