| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Name: | Granule Food Packing Machine | Application: | Beans, Grain, Rice, Sugar, Salt, Seeds Etc. |
|---|---|---|---|
| Weight Of Each Bag: | 500g-3000g | Dosing: | Volume Cups Turntable |
| Volume: | 2000ML | Feeding: | Z Type Elevator |
| High Light: | Beans Granule Packing Machine,500g Granule Packing Machine,Sugar Granule Packaging Machine |
||

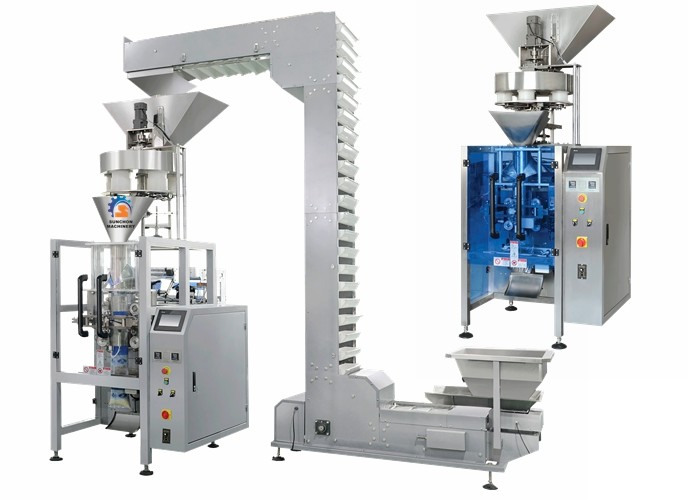

Full Automatic 500g Sugar / Beans Granule Packing Machine
Application
This packing machine is good for granular products, such as feeds, seeds, rice, peanut, tea, aginomoto, sugar, washing powder and so on.
Combined Parts
Featurer
1. Granule Packing machine is Full Automatic. Feeding, Dosing, Printing (Date), Filling. Bag Forming, and Sealing.
2. Packing machine can made of Carbon steel with powder coating, or Stainless Steel 304.
3: Easy operation. Most of parameter resetting by Touch Screen. Multi-language for client choose.
4: Film moving by Servo motor and a pair of belt, Horizontal and Vertical sealing temperature is independent. Make sure bag is beautiful and sealing very well.
5: Packing machine have alarming function, any wrong with it will show you soon.
Parameters
| Packing Speed | 5-70 Bags/Min |
| Volume | 2000ML |
| Bag Width | 150-250MM |
| Bag Length | 80-400MM |
| Packaging Film Max Width | 520MM |
| Packaging Film Thickness | 0.04-0.09MM |
| Packaging Film Material | OPP/CPP PET/PE PET-AL/PE Lamination |
| Weight Of Each Bag | 500g-3000g |
| Air Consumption | 0.3m³/Min |
| Air Pressure | 0.8Mpa |
| Power Supply | 220V 50Hz |
| Power | 5.5Kw |
| Dimension LxWxH | 1800x1280x1780MM |
