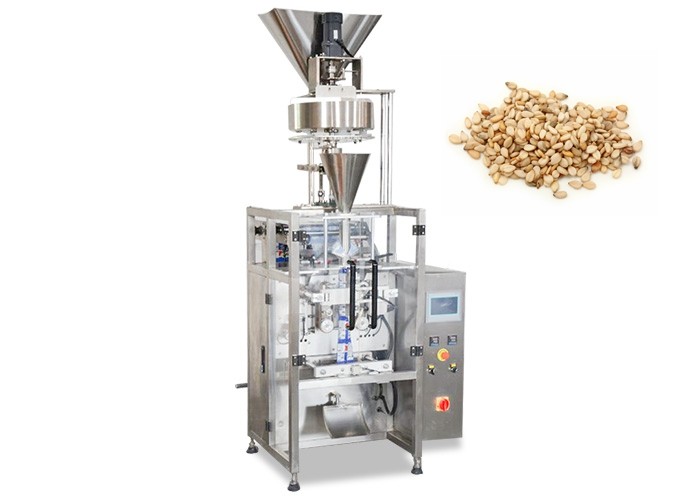

Pet Food Small Vertical Auto Weighing Packing Machine
Features:
1. adopts the advanced PLC control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.
2. adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.
Main Parts:
1. Z-type material elevator
2. Vertical granule packing machine
3. supplies feeding euipment with volume cups
4. prodocuts conveyor
5. rotating products handling tray

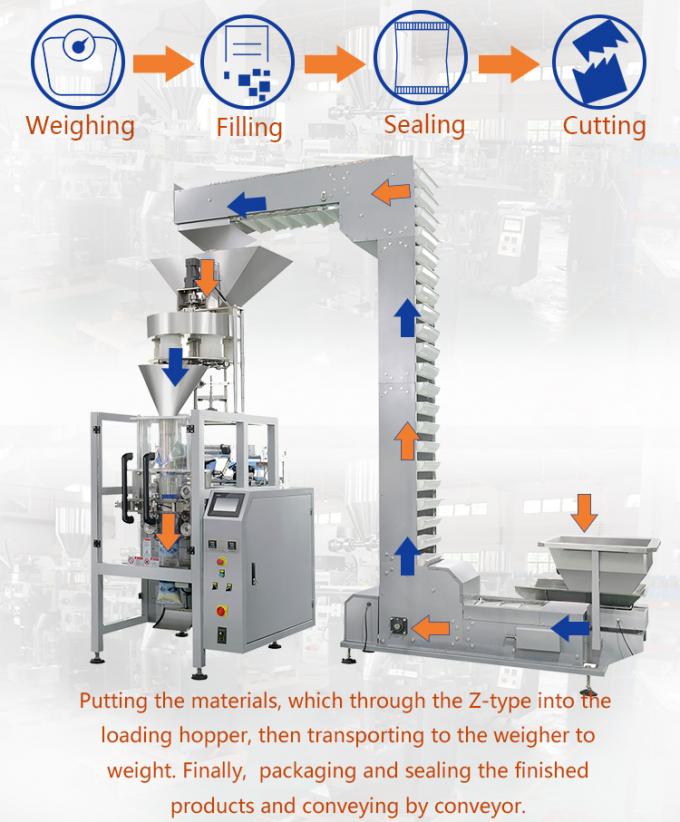

Working Process:
1. Z shape elevator send material to the top of material measuring equipments with volume cups
2. vertical packing machine automatically finish making bags, filling, sealing, cuting, printing codes.
3. Finished products will be conveyed to the rotating tray for handling.
|
Packing Speed
|
5-60 Bags/Min
|
|
Volume
|
2000ML
|
|
Bag Width
|
150-250 MM
|
|
Bag Length
|
80-400 MM
|
|
Max Width
|
520 MM
|
|
Thickness
|
0.04-0.09 MM
|
|
Material
|
OPP/CPP PET/PE PET-AL/PE Lamination Film
|
|
Weight
|
550 Kg
|
|
Air Consumption
|
0.4m³/Min
|
| Air Pressure | 0.8 Mpa |
|
Power Supply
|
220V 50Hz
|
| Power | 2.2Kw |
|
Dimension LxWxH
|
1500x1140x1540 MM
|
| Application | Rice, seeds, beans, grain, pet food, etc |

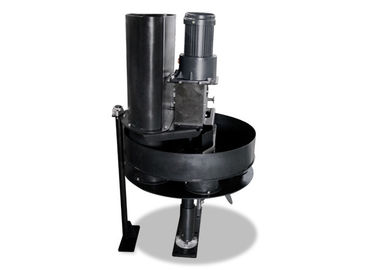

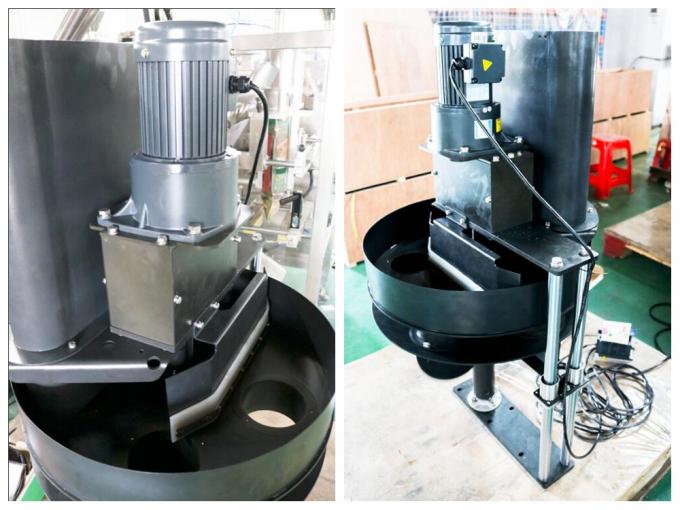

Volumetric Cup Device
| Hopper Capacity | 80L |
| Measuring Range | Dosing by volumetric cup |
| Volumetric Cup Capacity | 100ml-2000ml(Volumetric Cup is replaceable) |
| Packing Speed | 10-80bags/min(Depending on the speed of packing machine) |
| Dimension | (L)950mm×(W)880mm×(H)1200mm |
