Name: Small Hard Candy Horizontal Pillow Packing Machine
Brand: OEM

Small Hard Candy Horizontal Pillow Packing Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	wooden case package
Delivery Time:	15-20 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Packing Time Width Max(m):	150/280/350/450/550 Bag Engh(mm) 50-500 50-500 50-500 50-500 50-500	Bag Width(mm):	30-60,50-140,50-170,50-210,50-260
Max Product Width(mm):	5-40,5-60,5-60,5-70,5-100	Packing Speed:	50-350
Voltage:	220/380V,50Hz	Dimension(mm):	40009501450
High Light:	Hard Candy Auto Food Packing Machine , Horizontal Pillow Packing Machine , 3kw Automatic Food Packing Machine

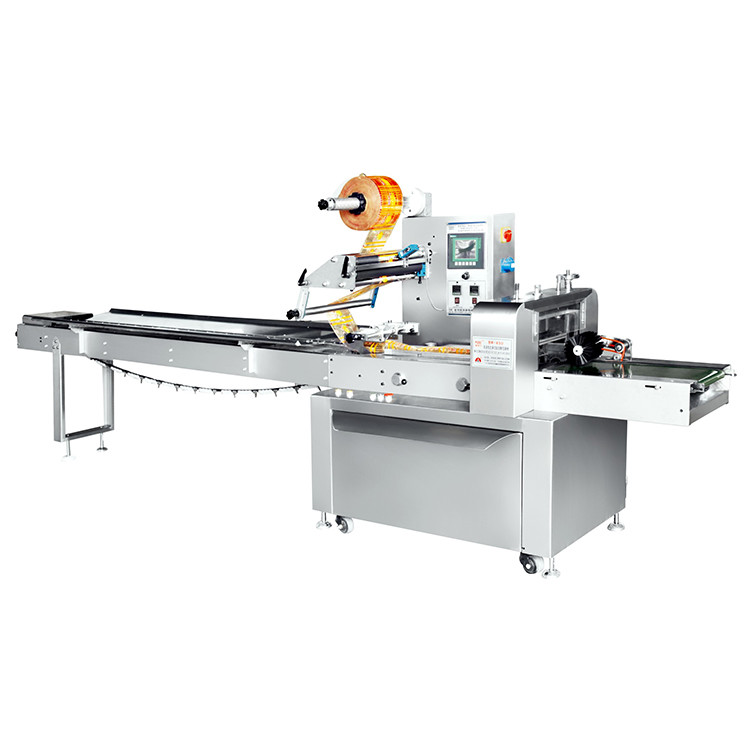

Small Hard Candy Horizontal Pillow Packing Machine

Packing time width Max(m)	150	280	350	450	550
Bag lengh(mm)	50-500	50-500	50-500	50-500	50-500
Bag width(mm)	30-60	50-140	50-170	50-210	50-260
Max product width(mm)	5-40	5-60	5-60	5-70	5-100
Roll diameter(mm)	300	300	300	300	300
Packing speed(bags/min)	50-350	50-350	50-350	50-350	50-350
Voltage	220/380V,50Hz	220/380V,50Hz	220/380V,50Hz	220/380V,50Hz	220/380V,50Hz
Power(kw)	3	3	3	3	3
Dimension(mm)	40009501450	40009501450	40009501450	40009501450	40009501450

PARAMETERS

1. Full servo motor control, the bag length can be set and cut, only the number of cutters input into the seal can be opened, and the system can realize the split knife operation.

2. using 7-inch color LCD touch screen integrated control, simple and intuitive operation.

3. Regardless of whether the material supply is continuous or intermittent, under any circumstances, the system can automatically and accurately ensure the uniform material in each packaging film, realizethe operation of the material loss without stopping the film, realize the zero empty package, and the packaging material. 0 loss.

4. The material deviation or displacement, the cutter stops, and the cutter automatically resumes operation after the material is discharged.

5. the device built-in without stopping the automatic film, saving costs.

6. Intelligent modular temperature control temperature control is more accurate.

7. The color mark tracking accuracy is high.

8. the drive is simple, reliable, easy to maintain and maintain, has not been exposed to the installation, maintenance, operation of the equipment, can be mastered in 5 minutes.

9. The whole machine is equipped with multiple security protection measures.

Our Services

Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
