Jelly Multihead Vertical Auto Food Packing Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	wooden case package
Delivery Time:	15-20 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Bag Length (mm):	80~300,80`400,100~480	Bag Width (mm):	50~200,80~250,180~320
Max Width Of Roll Film (mm):	420,520,680	Packing Speed (bags/min):	5~60,5~50,5~50
Measuring Range (ml):	150~1200 3000 (Max) 6000 (Max)	Air Consumption (Mpa):	0.65
Gas Consumption (m³/min):	0.3 0.4 0.4	Power Voltage (V):	220V AC/50Hz
Power (KW):	2.2 4 5	Automatic Grade:	Automatic
Highlight:	Jelly Auto Food Packing Machine , Vertical Auto Food Packing Machine , Multihead Auto Food Packing Machine

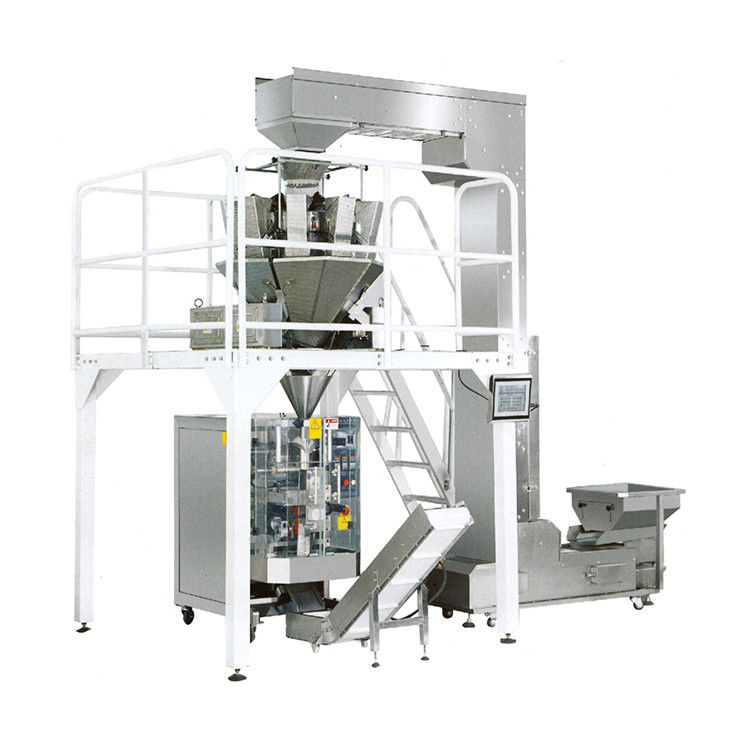

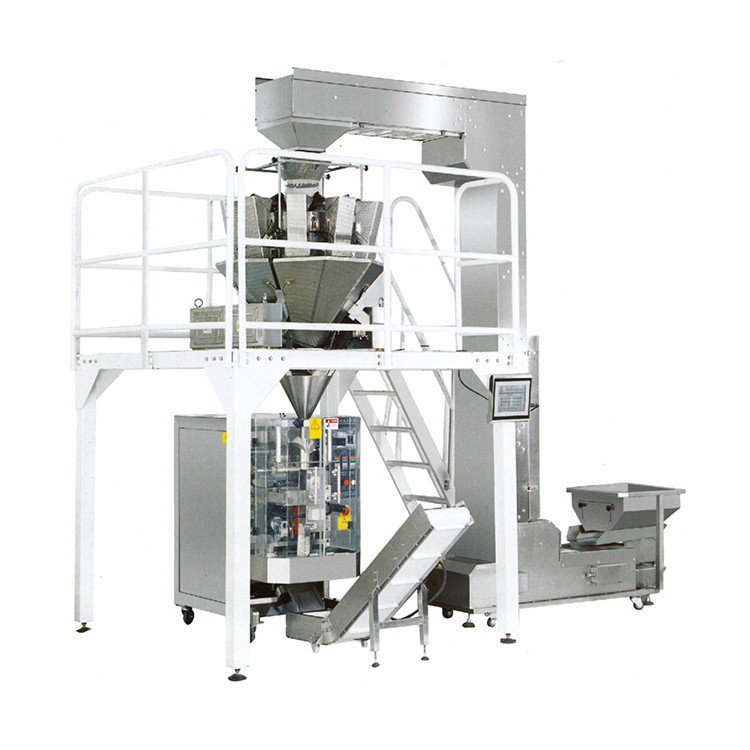

Jelly Multihead Vertical Auto Food Packing Machine

Characteristics:

PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.
Double servo control, high precision orientation, size more nicely.
External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
Close down type mechanism, defending powder into inside of machine.

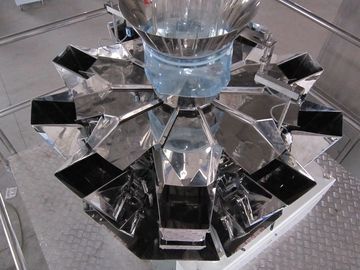

Multihead weighter measuring, packing weight more precision, product cost more low.

Application:

It is suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.

Main technical:

Model	HTL-V420	HTL-V520	HTL-V680
Bag length (mm)	80~300	80~400	100~480
Bag width (mm)	50~200	80~250	180~320
Max width of roll film (mm)	420	520	680
Packing speed (bags/min)	5~60	5~50	5~50
Measuring range (ml)	150~1200	3000 (Max)	6000 (Max)
Air consumption (Mpa)	0.65	0.65	0.65
Gas consumption (m³/min)	0.3	0.4	0.4
Power voltage (V)	220V	220V AC/50Hz	220V AC/50Hz
Power (KW)	2.2	4	5
Dimension (LWH) (mm)	13209501360	115017951650	178013501950
Weight (kg)	540	600	900

Our Services

Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.

After-sale

1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
