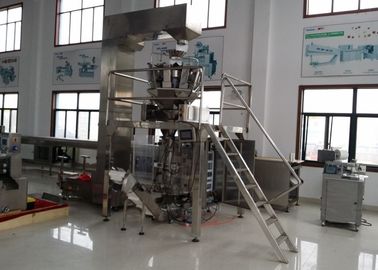

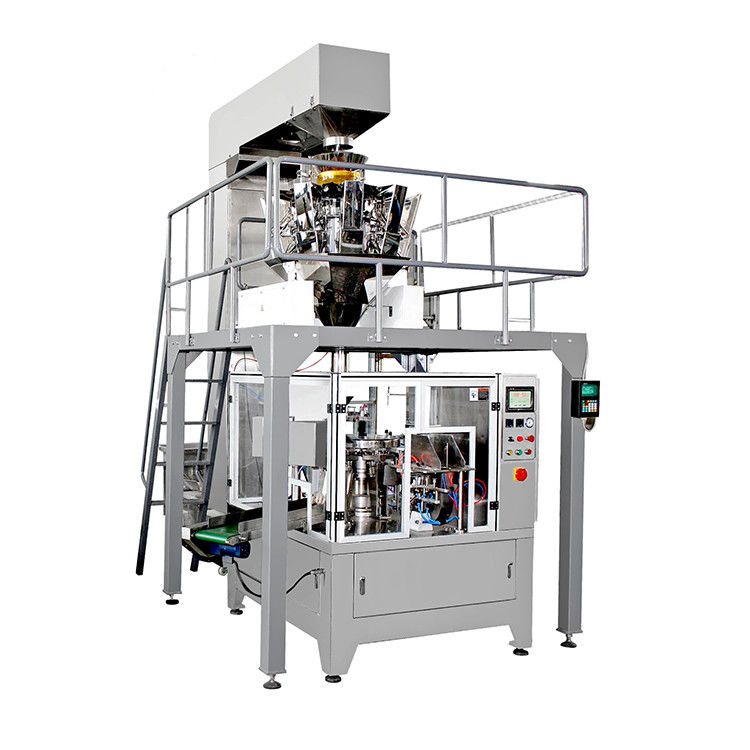

Multihead Weigher Vertical Servo Control Food Bagging Machine
Application:
The bagging machine is widely used for packing of products in shape of granules, stripes, slices, such as candy, potato chips, jelly, and peanuts.
Characteristics:
1. Touch screen with stable transmitting PLC control to perform bag making, weighing, filling, sealing, code printing, and cutting automatically.
2. Independent compressed air control and electrical wire system control separately, low noise in running, stable performance.
3. Vacuum belt pulling system to feed film and make bags with no faults.
4. Double servo control system, precise positioning.
5. Easy to palce the rewind rolls onto the machine.
6. Set uo and adjust parameters on touch screen to change bag size.
7. Sealed structure design to prevent dust contamination.
8. Multi computerized weighing heads to deliver correct weight.
Specifications:
| Mode | HTL-V420 | HTL-V520 | HTL-V680 |
| Bag length(mm) | 80-300(L) | 80-400(L) | 100-480(L) |
| Bag width(mm) | 50-200(W) | 80-250(W) | 180-320(W) |
| Max width of roll film(mm) | 420 | 520 | 680 |
| Packing speed(bags/min) | 5-60 | 5-50 | 5-50 |
| Volumn range | 150-1200ml | 3000Max | 6000Max |
| Air consumption(Mpa) | 0.65 | 0.65 | 0.65 |
| Gas consumption(m3/min) | 0.3 | 0.4 | 0.4 |
| Power voltage | 220V | 220V | 220V |
| Power(KW) | 2.2 | 4 | 5 |
| Dimension(L*W*H)mm | 1320*950*1360 | 1150*1795*1650 | 1780*1350*1950 |
| Weight(kg) | 540 |
Our Services
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
