| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Voltage: | 220V,50/60HZ,4.0KW | Function: | Wrapping, Labeling, Sealing |
|---|---|---|---|
| Packaging Type: | Bags, Film, Pouch | Dimension(L*W*H): | (L)3318(W)992(H)1468mm |
| Usage: | Bag Making | Main Function: | Sealing Bag |
| Bag Type: | Pillow Bag | Machine Material: | Stainless Steel .carbon Steel .etc |
| Bag Length: | 45-80mm | Film Material: | Composite Material:OPP |
Machine Specification
| Film Width | 350mm |
| Bag length | 45-80mm |
| Bag width | 50-160mm |
| Product Height | Max.55mm |
| Film roll diameter | Max.320mm |
| Packing Speed | 1-300bags/min |
| Power Specification | 220V,50/60HZ,4.0KW |
| Machine size | (L)3318(W)992(H)1468mm |
| Machine weight | 1000kg |
Main performance and structure features
1. Double motors, converter and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for function adjusting and upgrading

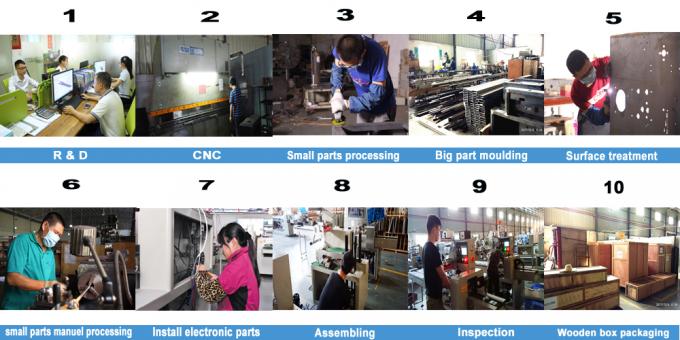

Production Processing
Optional device
1. Date coder
2. Automatic Punching Device
3. Full Stainless
4. Large Touch Screen
5. Air filling device
6. Release the air
7. Gusset device
8. No empty bag function
9. Customized sealing patterns and notch
10. Automatic feeder
Application
Applying to the packing of various kinds of items with regular shape in many industries, like food, hardware, medical products, daily use products, stationary,toys, hotel supplies, electric products etc.
