| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Material: | 304 Stainless Steel And Carbon Steel | Performance: | Pillow Package, Back Sealing Bag |
|---|---|---|---|
| Packing Speed: | 40 To 230bags/min | Bag Width: | 40mm-160mm |
| Bag Length: | 30mm-330mm | Function: | For Packing Butter Biscuit |
| Usage: | Biscuit,Bread | Machine Weight: | 500kg |
| High Light: | Stainless Steel Bakery Biscuit Packing Machine,Chocolate Bakery Biscuit Packing Machine,Pillow Bag Biscuit Packing Machine |
||

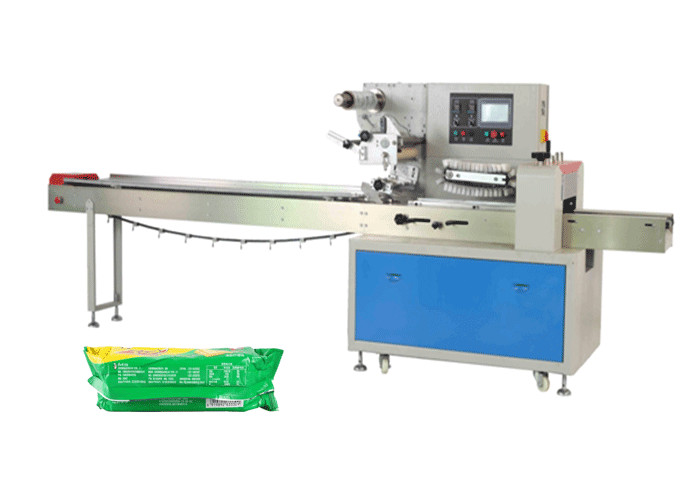

Stainless Steel Pillow Chocolate Bakery Biscuit Packing Machine
Feature:
1. Double transducer control, bag length can be flexible cutting, operator needn't to adjust the unloading working, saving time and saving films

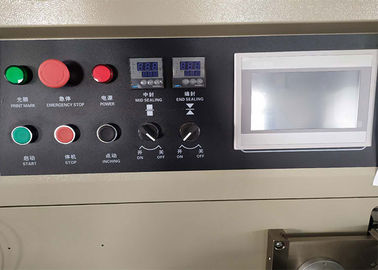

2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing & cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Applications:
Suitable for packing various kinds of regular objects like cookies, biscuits,pies,chocolates,bread,instant noodles, mooncakes,drugs,daily applicances,industrial parts,paper boxes,plates,etc.
Advantages:
1. Efficient to finish the profuction sealing,packing and date printing in one time.
2. Intelligent:Automatic stop function,unsticky and not wasting the films.
3. Convenient:labor-saving,low loss,easy to operater and maintain.
Parameter:
| Model | JY-250E/S | JY-250B/D | JY-320B/D | JY-350B/D | |
| Film width | Max.180mm | Max.250mm | Max.320mm | Max.350mm | |
| Bag length | 50-115mm or 45-90mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm /90-280mm 90-220mm/120-330mm |
|
| Bag width | 30-80mm | 30-110mm | 50-160mm | 50-160mm | |
| Product’s height | Max.35mm | Max.45mm | Max.55mm | Max.60mm | |
| Packing speed | 60-330bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min | |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | |
| Machine dimension | 3770x670x1450 | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 | |
| Machine weight | 500kg | 500kg | 550kg | 580kg | |
| Model | JY-400 | JY-450 | JY-600 | JY-700 | |
| Film width | Max.400mm | Max.450mm | Max.600mm | Max.700mm | |
| Bag length | 120-400mm | 120-500mm | 120-500mm | 120-500mm | |
| Bag width | 50-180mm | 50-180mm | 100-280mm | 100-330mm | |
| Product’s height | Max.70mm | Max.80mm | Max.80mm | Max.80mm | |
| Packing speed | 30-150bags/min | 30-150bags/min | 20-150bags/min | 20-150bags/min | |
| Power | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V /60HZ 2.8KW | 220V 50/60HZ 2.8KW | |
| Machine dimension | 4020x800x1450 | 4020x820x1450 | 4020x920x1460 | 4020x980x1480 | |
| Machine weight | 600kg | 650kg | 680kg | 720kg | |
Sample photos:
