| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Automatic Grade: | Automatic | Voltage: | 220V 50Hz |
|---|---|---|---|
| Power: | 36kw | Dimension(L*W*H): | 9318*1400*1700mm |
| Packaging Material: | PE/PP | Packing Type: | Three Side Or Four Side Sealing |
| High Light: | Bean Milk Powder Filling Packing Machine,Flour Powder Filling Packing Machine,Stand Up Powder Pouch Packing Machine |
||

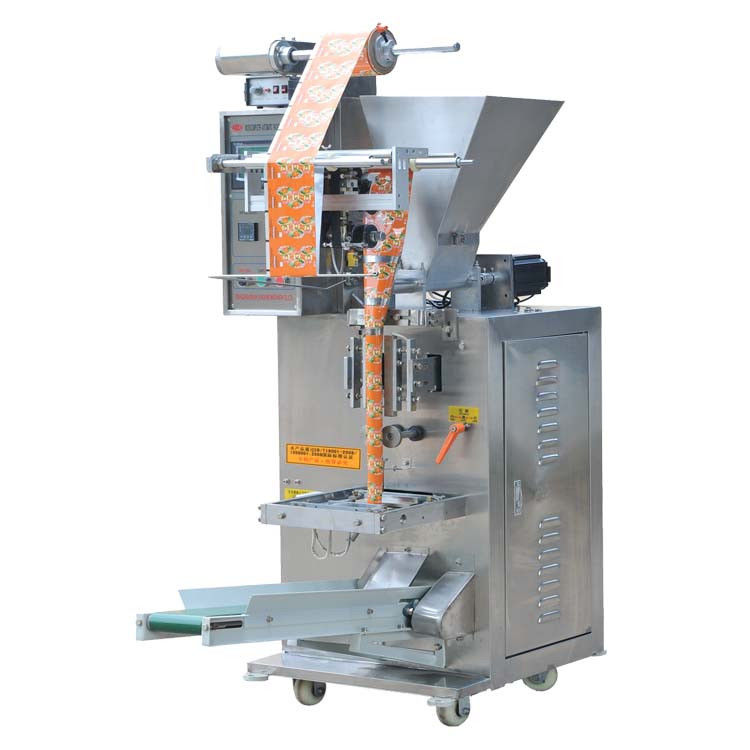

Stand Up Bag Flour / Bean Milk Powder Filling Packing Machine
Description
This machine is a professional packaging machine designed for powder material automatic filling, this machine adopts the advanced industrial computer control system, through the Chinese LCD touch screen can realize the function of setting,make the operation more simple and clear.
The packagingprocess is intuitive, simple operation method, specification adjustment is convenient and fast. According to the need to bechanged at any time three side sealing and sealing four edges of two different forms of sealing, the sealing property is good,beautiful appearance. Measurement device can have a variety of options, such as piston pump for multiple gluing body packaging(P) and hyper pump (H).
Feature
1. This is a multi measuring cups, multi function and micro-computer automatic packing machine.
2. It can finish the process, bag forming, filling, counting, sealing and cutting and so on.
3. This model equipped with foll coder which can print production date.
4. With barcode equipment and advanced electronics.
5. Factory direct supply and competitive price for your choice.
Application
This machine is suitable for automatic packaging powder materials such as flour, mung bean powder, lotus root starch, sesame paste, bean milk powder and other bad fluidity.
Technical Parameters
|
Bag Type
|
center sealing / 4-side sealing
|
| Style | Three side seal,Double stand up pouch,zipper bag |
|
Main Film Roll Width
|
Max 970mm |
|
Main Film Roll Diameter
|
Max 800mm |
|
Bag Width
|
≤450mm
|
|
Bag Length
|
≤420mm (can be customized)
|
|
Bag Making Capacity
|
35m/min |
|
Bag Making Speed
|
30-180pcs/min
|
|
Power
|
36kw
|
|
Voltage
|
220V 50Hz
|
|
Dimension
|
9318*1400*1700mm
|
| Outline size | 11680mm*1680mm*1880mm |
|
Weight
|
4500kg
|
