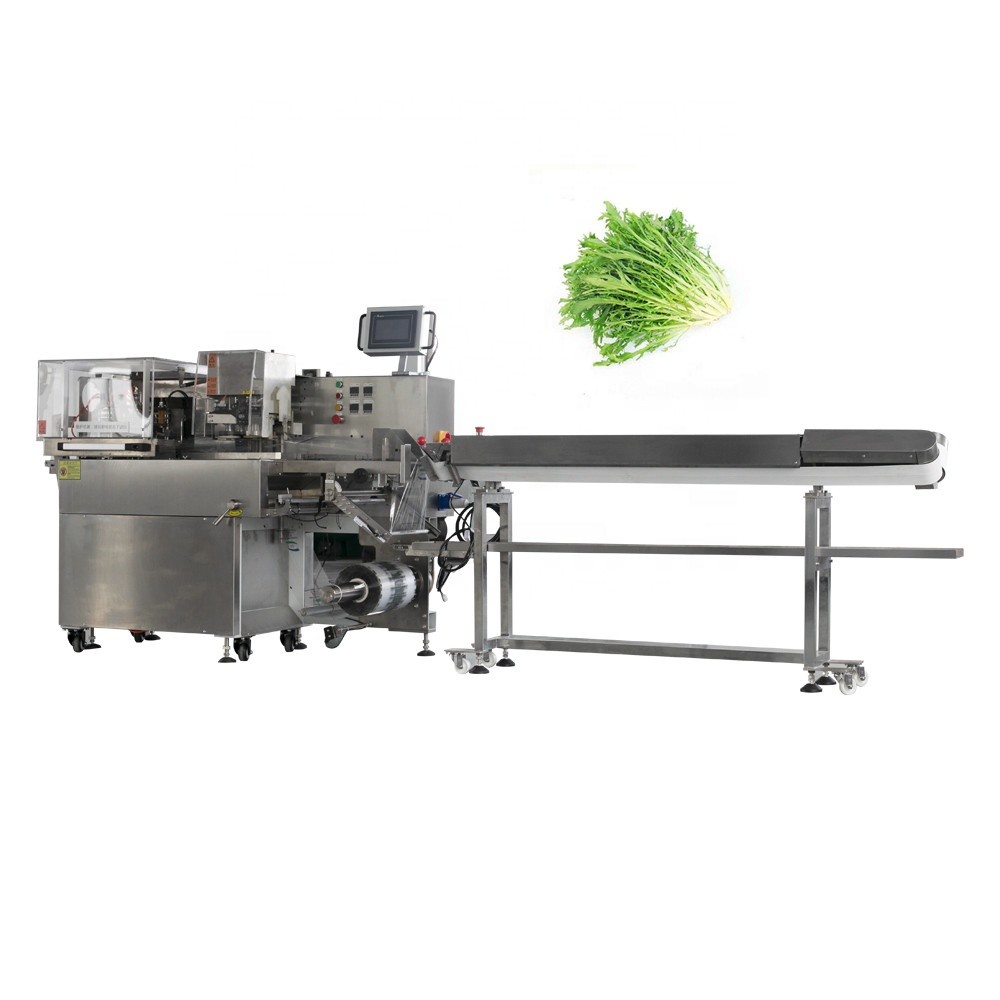

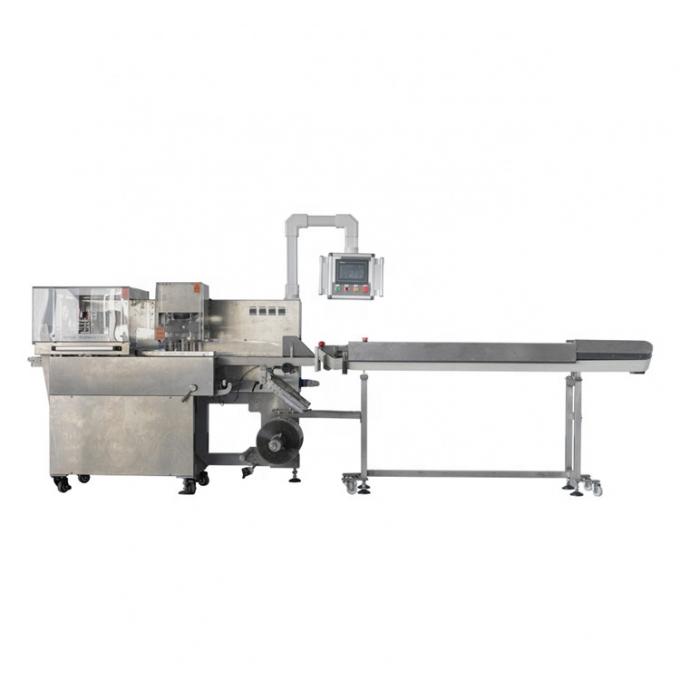

Horizontal Plastic Film Fresh Fruit Vegetable Packing Machine
Product Description
Fruit Film Packaging Machine/Automatic Vegetable Horizontal Packing Machine
Application
Mainly used for automatic packaging of Fresh Vegetables and fruits. As the last link of modern food production, the stable and safe automatic packaging machine is conducive to food preservation, reducing cost and improving product quality.
Dimension(L*W*H)
3800*935*1350 mm
Capacity
10-60 pcs/min
Max. Speed of Film
20 m/min
Max. Width of Film
400 mm
Max. Diameter of Film
300 mm
Product size (W)
Max.180mm
Product size (H)
Max.80mm
Cut-off Length
90-400mm
Power capacity
1 Phase, 5.0 kw
Voltage
220V
Weight
520 kgs
Function
1. Anti-Empty bag device: When the sensor does not detect the product, the sealing device of the packaging machine will stop running and wait for the conveyor belt to feed, and does not make empty bags to avoid unnecessary waste of the packaging film.
2. Anti-cutting device: When the sensor detects that the product is misaligned, the device will automatically skip the product and wait for the next product to arrive. This not only eliminates the loss of the product being cut but also avoids the damage of the sealing props, thereby reducing the failure rate and prolonging the mechanical life.
3. Anti-bite device: When the sensor detects that there is something else or the product has been cut, the system will determine whether the item is cut, and will immediately return to the original point and stop.
4. V-type feeding conveyor belt: It is made of stainless steel baffle and belt that can be dismantled and washed, paying attention to the safety and hygiene of the machine.
5. Code device
6. Automatic length measuring device
7. There also is manul input length system to meet diffent material.
Features
1. Adopt Box Motion reciprocating head seal to extend the sealing time to ensure a better and more beautiful sealing effect.
2. Adopt three-sided sponge to reduce the exhaust effect required for the packaging of Flammulina velutipes/ Enokitake.
3. The size of the packaging machine is reasonable, which is convenient for the user to arrange the position of the machine.
4. In order to better realize the stability of the packaging machine and the adjustment capability of the machine itself, a 2-axis servo motors are installed in each drive unit, and the error accuracy is reduced to about 3 mm.
5. Operating the handle can easily adjust the tension between the drive roller and the heating roller in the middle seal section.
6. Up to 3 types of product information can be registered in the touch screen to realize a production mode with multiple varieties.
7. The feeding conveyor belt is made of stainless steel baffles and belts that can be disassembled for washing simply, paying attention to the safety and health of the machine.
8. The surface maintenance of the sealing part of the packaging machine and the cleaning of the waste generated during the packaging of the product can also be carried out simply.
