| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Material: | Food Grade Material | Performance: | Beautiful Appearance |
|---|---|---|---|
| Packing Speed: | 5-40bags/min | Bag Width: | 100mm-330mm |
| Bag Length: | 120mm-longer | Function: | Stable, Effective, Steady |
| High Light: | Stainless steel Fruit Vegetable Packing Machine,Horizontal Fruit Vegetable Packing Machine,Fruit Pillow Bag Packaging Machine |
||

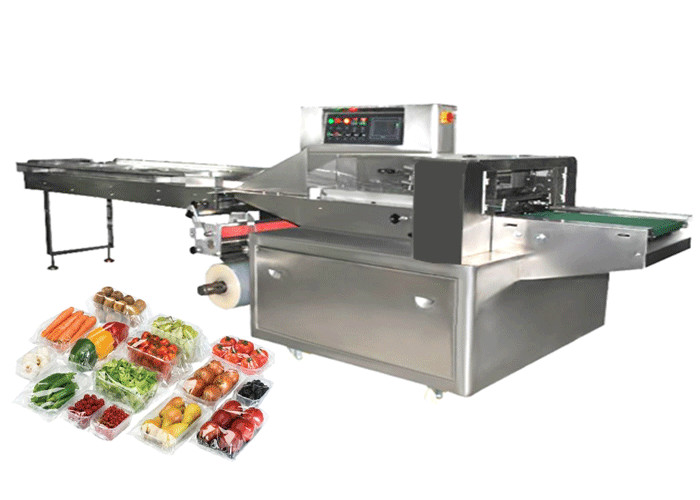

Horizontal Agricultural Products Fruit Vegetable Packing Machine
Parameter:
| Model | JY-600XD | JY-700XD |
| Film width | Max.600mm | Max.700mm |
| Bag length | 120mm- longer | 120mm-longer |
| Bag width | 100-280mm (depends on product’s height) | 100-330mm(depends on product’s height) |
| Product height | Max.110mm ( can be customized) | Max.110mm ( can be customized) |
| Packaging rate | 5-40bag/min (depends on product size) | 5-40bag/min (depends on product size) |
| Power | 220V 50/60Hz 2.8KW | 220V 50/60Hz 2.8KW |
| Machine size | (L)4020×(W)920×(H)1460mm | (L)4020×(W)980×(H)1480mm |
| Machine quality | About 680kg | About 700kg |
| Film roll diameter | Max.320mm | Max.320mm |
| Packing material | OPP/CPP,OPP/PE,PET/PE | OPP/CPP,OPP/PE,PET/PE |
Feature:
1. Three Servo motors , PLC control, one stop operation for bag length setting and cutting,
2. All control in one control panel, user-friendly and easy operation
3. Box-motion cutter for high products packing and ensure the compact package
4. Empty bag prevention, no product no bag
5. Update version of anti-cut on product function, perfectly avoid damage on the products and the cutter
6. Independent control for movement of center sealing part and end sealing part, to meet different product height
7. Have alternative choose for flexible length system and fix length with guide pusher
8. Use 304 stainless steel for touch part, it is food grade.
Scope of application::
It is suitable for vegetable and fruit packing, also for other food Anti-rush product packing, agricultural products

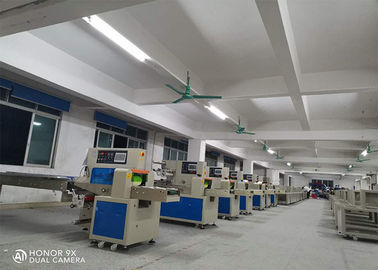

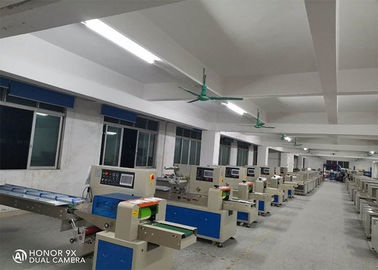

Sample photos
