| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| Type: | Multi-Function Packaging Machine | Certification: | CE,ISO |
| Condition: | New | Packaging Type: | Bags,Pouch,Film |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| High Light: | Automatic Snacks Packing Machine,French Fries Snacks Packing Machine,French Fries snack food packaging machine |
||

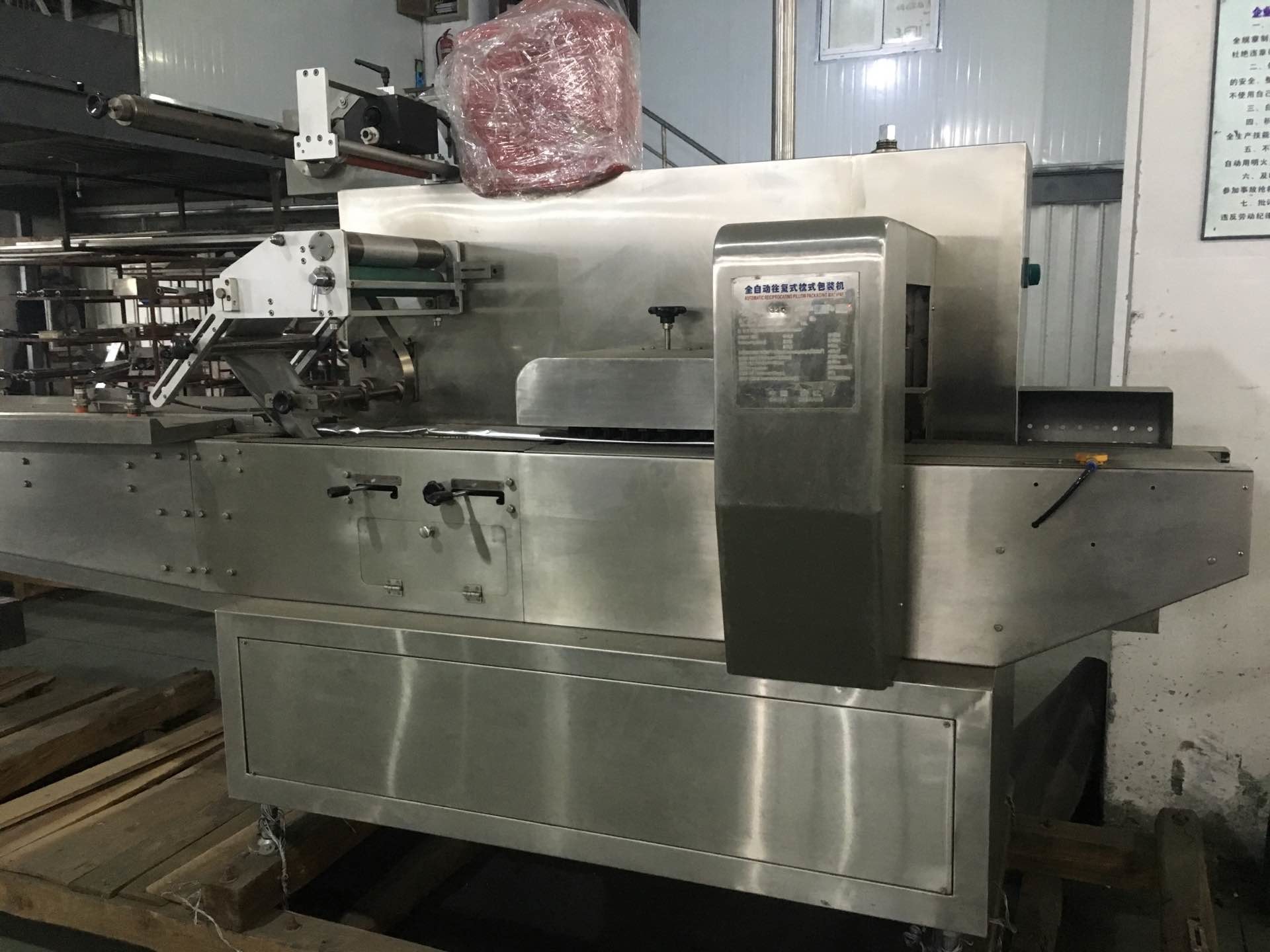

French Fries Multifunction Automatic Snacks Packing Machine
Description
Automatic packaging machine with automatic measurement, filling, bagging, sealing, cutting off, conveying, printing production batch number, increase the easy incision, no material warning, mixing and other functions.
Machine directions
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 5-230Bags/min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
| Application | French Fries, chips, ect | |
Structure features
(1). Adopting PLC programmable controller to make whole machine run program touch screen operation and user-friendly operation mode, set bag length, speed, sealing temperature and other parameters, and display the actual bag length, actual speed, total output, consumption of film Length, vertical sealing temperature, sealing temperature before and after the data.
(2). Tracer on the packaging materials in the production process errors found in a timely manner to give accurate compensation and correction, to avoid waste of packaging materials. If the test does not meet the technical requirements after tracking the predetermined number of times, it can be automatically shut down pending inspection to avoid the generation of waste.
(3). Controller according to the cutter signal measurement of the current production quantity, can be cleared.
(4). All controls are implemented by software for easy function adjustment and technology upgrades. There is the possibility of expanding production in the future can also be equipped with ancillary devices, such as the completion of trademark printing, photoelectric color detection, batch number printing, automatic film and other operations.
(5). With fault alarm and shutdown function, there is an emergency shutdown switch, you can turn off all electrical and pneumatic control switch. A little move switch. The entire line of a control cabinet.
