| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Finished Package Size: | 70-1000/30-170/5-80mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-450mm | Machine: | 220V |
| Certificate Of Authentication: | CE | Packaging: | Composite Membrane |
| Overall Size (length * Width * Height): | 4400×830×1700mm | Machine Weight: | 900kg |
| Power: | 3KVA | Type: | Multi-Function Packaging Machine |
| High Light: | Pillow Bag Chips Packing Machine,Multifunction Snacks Packing Machine,Pillow Bag snack food packaging machine |
||

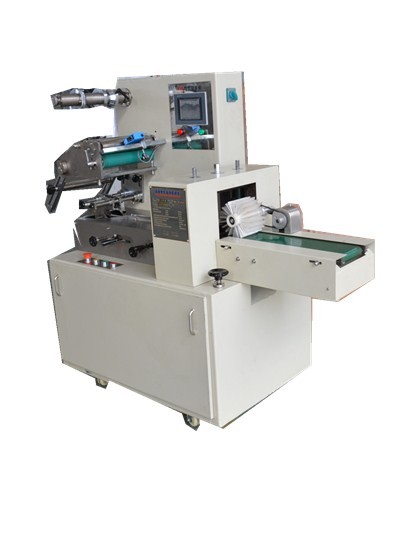

Pistachios Multifunction Pillow Bag Chips Packing Machine
Description
Pillow packaging machine is a packaging capacity is very strong, and can be used for a variety of specifications for food and non-food packaging, continuous packaging machine. It can be used not only for packaging of non-trademarked packaging materials but also for high-speed packaging using web materials preprinted with a logo. In the packaging production, due to the error of the positioning color code printed on the packaging material, the stretching of the packaging material and the influence of the mechanical transmission and so on, the predetermined sealing and cutting position on the packaging material may deviate from the correct position, resulting in errors. In order to eliminate the error and achieve the purpose of correct sealing, packaging design must consider the automatic positioning problem, to solve this problem are mostly based on the positioning of packaging materials to complete a continuous photoelectric automatic positioning system design. The continuous photoelectric positioning system according to the error compensation work is divided into retractable, brake and two transmission system synchronous.
| Finished package size(mm) | Length | 70-1000mm |
| Width | 30-170mm | |
| Height | 5-80mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz | |
| Power | 3KVA | |
| Machine weight (kilogram) | 900kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
application:
Puffed food, chips, candy, pistachios, raisins, dumplings, meatballs, peanuts, biscuits, jelly, candied fruit, walnuts, pickles, frozen dumplings, almonds, salt, detergent, Flake, short, powder and other items.
Feature:
1)Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.
2)Impoted servo film transport system, imported color code sensor, accurate positioning, excellent overall performance and beautiful packaging.
3)A variety of automatic alarm protection functions to minimize losser.
4)Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5)Bag-making equipment can be changed according to specific requirement of customers and products.
6)Optional English or other languages screen display, easy and simple operation. Both packaging speed and bag length can be set with one click.
7)All machines have CE certification and ROSH certificate.
