Name: 1500g Multihead Vertical Rice Packing Machine
Brand: OEM

1500g Multihead Vertical Rice Packing Machine

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	wooden case package
Delivery Time:	15-20 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Voltage:	220V Customization Acceptable	Dimension(LWH):	(L)1217x(W)1015x(H)1343mm
Film Material:	OPP/CPP,OPP/PE,BOPP/VMPET/PE Etc	Film Thickness:	0.04-0.12mm
Bag Length:	80-300mm(31.5"-118")	Bag Width:	60-200mm(23.6"-78.7")
Film Width:	Max.420mm	Measurement Range:	150-1500g
High Light:	Vertical Rice Packing Machine , 1500g Rice Packing Machine , Vertical Rice Packaging Machine

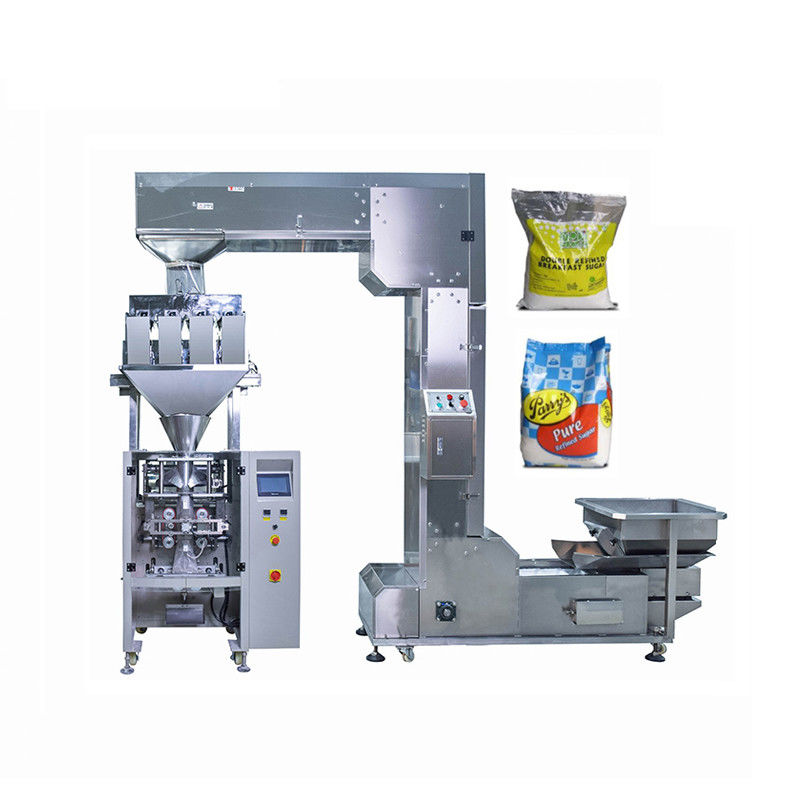

1500g Multihead Vertical Rice Packing Machine

Product Description

Main Machine Specification
Main Machine Specification
Model	LD-420(upgrade)	Film Width	Max.420mm
Bag Lenth	80-300mm	Bag Width	60-200mm
Bag Lenth	80-300mm	Bag Width	60-200mm
Film Roll diameter	Max.320mm	Packaging Rate	5-60bags/min
Measurement Range	150-1500g	Film Thickness	0.04-0.08mm
Power	220V 50/60Hz 2KW	Machine Dimension	(L)1217(W)1015(H)1343mm
Machine Quality	About 650KG	Optional device	Date coder, Hole punching device

Macine Suitable Range:

lt's suitable to use in packing the high accuracy and easy fragile materia such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares. Medicine, etc.

1500g Multihead Vertical Rice Packing Machine 0

Main feature

1. Efficient: Bag

- making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance;

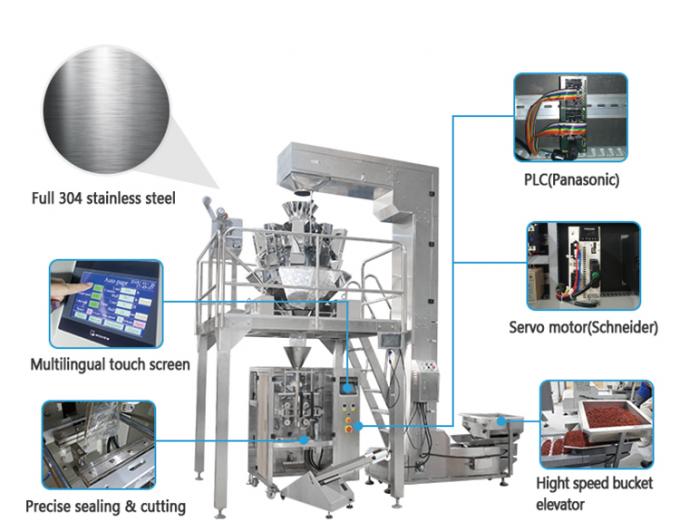

Machine Main Parts

Name: Multi Heads Weigher

It is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee,granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc.

It is also suitable for weighing small hardware and plastic component.

Name: Vertical packing machine

Digital screen display with numerical setting and flexible operation;Imported PLC control system and color touching screen, easy operation;PID independent control of temperature, more suitable for different packaging material

Name: Z Type Elevator

Available for lifting of frangible and non-frangible material such as fried chips, prawn cracker, crispy rice, metals and
medicines, etc.

Name: Supporting Platform

Adopting imported miniature motor and featured with low noise and long tifetime. It can transport finished goods to platform,
reduce waste during packing, making the machine work more smoothly.

Name:Finished Product Conveyor

Adopting imported miniature motor and featured with low noise and long tifetime. It can transport finished goods to platform,
reduce waste during packing, making the machine work more smoothly.

1500g Multihead Vertical Rice Packing Machine 1

For any Questions

1. Q : Can your machine meet our needs well, how to choose the proper settings ?
A : Dear, before quoting, please kindly consult us and providing:
1).The packaging pruduct name;
2).Packaging bag size(Length/Width) or the weight of each packaging bag;
3). Pacaging speed;
4).Bag types showing above or your own design;
it will be more easier for us to recommend the most suitable packing machine for you to make your cost to the minimum.

2. Q: Do you have manual or operation video for us to know more about the machine?
A : Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of
testing the material from our packaging machine if your packing goods easier for us to find from our local market.
