| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Voltage: | 220V | Power: | 4KW |
|---|---|---|---|
| Weight: | 800Kg | Dimension(L*W*H): | (L)1080mm*(W)1300mm*(H)1400mm |
| Key Selling Points: | Easy To Operate | Machine Material: | Stainless Steel Or Mild Steel |
| Color: | White | Types Of Seals: | KIS Horizontal,vertical,45° |
| Packing Material: | OPP/CPP,CPP/PE,MST/PE,PET/PE | Driven Type: | Electric |
| Type: | Multi-Function Packaging Machine | ||
| High Light: | Stainless Steel Rice Packing Machine,3kg Rice Packing Machine,3kg Rice Packaging Machine |
||

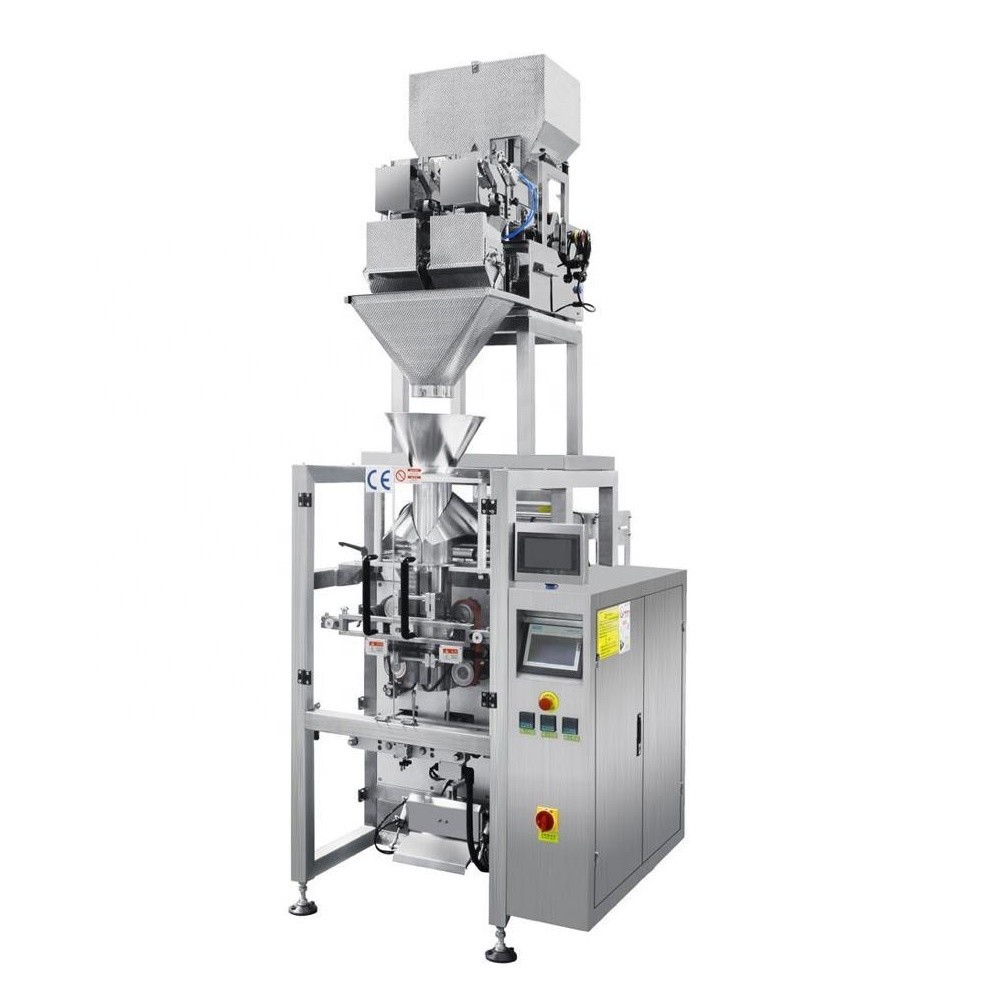

Multifunction 3kg Stainless Steel Rice Packing Machine
Technical characteristics:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to±1°C.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag–making, sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Application:
Suitable for small granular products,such as sugar,rice,seeds,salt,spices,flavoring,chemical etc.
Technical parameters
|
Bag length |
100-350mm(L) |
|
Bag width |
60-250mm(W) |
|
Max width of roll film |
520mm |
|
Packing speed |
10-70bags/min |
|
Measuring range |
3kg |
|
Air consumption |
0.65mpa |
|
Gas consumption |
0.4m³/min |
|
Power voltage |
220V/50HZ |
|
Power |
4KW |
|
weight of machine |
800Kg |
| Dimension(L*W*H) | (L)1080mm*(W)1300mm*(H)1400mm |

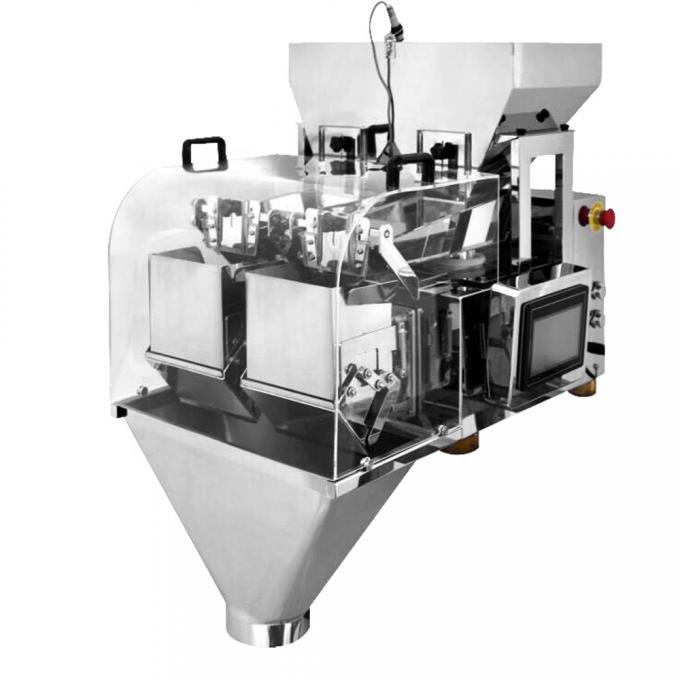

Linear weigher
Application:
Range of application:dosing and weighing of small grain,powder material of daily food and condiment such as white sugar,salt,seed,rice,monosodium,glutamate,fodder,milk powder,coffee and sesame,etc.
Special features:
1. Make mix different products weighing at one discharge;
2. Adopt no-grade vibrating feeding system to make products flowing more fluently;
3. Program can be freely adjusted according to production condition;
4. Adopt high precision digital load cell;
5. Stable PLC system control;
6. Color touch screen with Multilanguage control panel;
7. Sanitation with 304 S/S construction;
8. The parts contacted products can be easily mounted without tools;
9. IP65 construction.
|
Single Dump Max. (g) |
20-1500G |
|
Weighing Accuracy(g) |
0.2-2g |
|
Max. Weighing Speed |
10-45wpm |
|
Weigh Hopper Volume |
3000ml |
|
Control Panel |
5.7” LCD Touch Screen (WEINVIEW) |
|
Max. mix-products |
4 |
|
Power Requirement |
220V/50/60HZ 8A/800W |
|
Packing Dimension(mm) |
996(L)*1032(W)*1032(H) |
|
Gross/Net Weight(kg) |
200/180kg |
