| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Voltage: | 220V,50/60HZ | Weight: | 880kg |
|---|---|---|---|
| Driven Type: | Electric | Dimension(L*W*H): | 4389*870*1500MM |
| Bag Length: | 120-450mm | Bag Width: | 50-200mm |
| Product Height: | Max.90mm | Film Roll Diameter: | Max.320mm |
| Packing Speed: | 50-300 Bag/min | Material: | Stainless Steel |
| Bag Type: | Pillow Bag | ||
| Highlight: | Pillow Bag Bakery Biscuit Packing Machine,Horizontal Bakery Biscuit Packing Machine,pillow bag Biscuit Packing Machine |
||

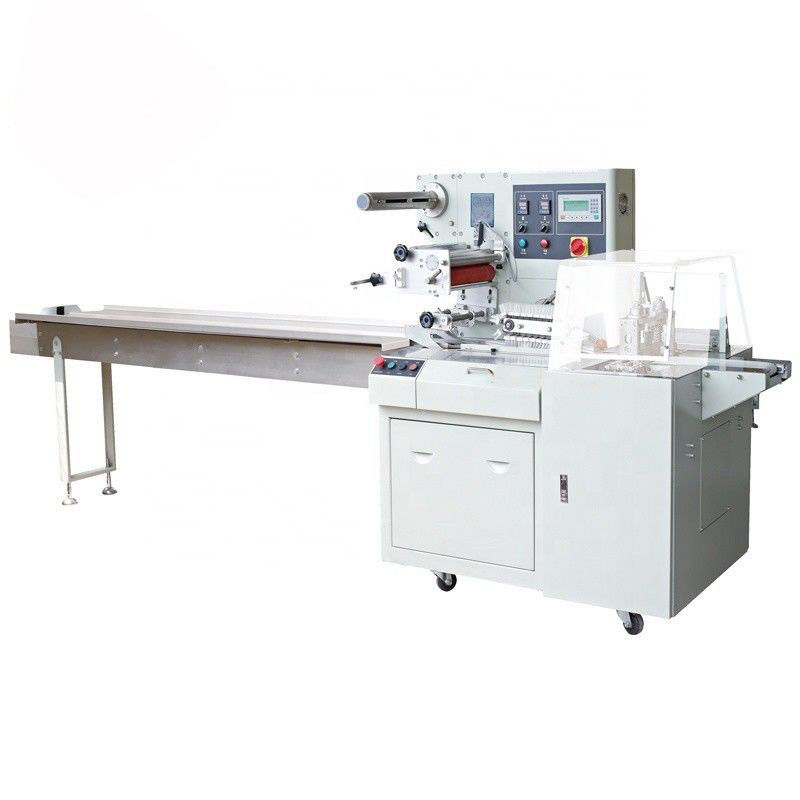

Pillow Bag Bakery Biscuit Packing Machine
Product Description
|
Technique specification |
|
|
Film width |
Max.450mm |
|
Film roll diameter |
Max. 320mm |
|
Bag length |
120-450mm |
|
Bag width |
50-200mm |
|
Product Height |
Max.90mm |
|
Weight |
About 880kg |
|
Packing Speed |
50-300bag/min |
|
Voltage |
220V,50/60HZ (380V acceptable ),2.4Kw |
|
Dimension( L*W*H) |
4389*870*1500MM |
|
Driven Type |
Electric |
|
Packaging Material |
Paper, Plastic, OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film. |
|
Material quality |
Carbon steel,201/304 Stainless steel |
|
Control |
PLC , PID control for temperature |
| Bag type | pillow bag |
The feature
1. Double inverter control, the bag length can be set and cut, no need to adjust the air, one step in place, saving time and film.
2. Colorful touch screen, parameter setting is convenient and fast
3. Fault self-diagnosis function, fault display at a glance
4. High-sensitivity photoelectric eye mark tracking, digital input sealing and cutting position, making sealing and cutting position more precise
5. Temperature independent PID control, better suited to a variety of packaging materials
6. Reciprocating end sealer makes the seal stronger, and the seal cutter has no loss.
7. End sealing pin device makes the bag shape more beautiful and improves product grade.
8. Positioning stop function, no sticking knife, no waste film.
9. The drive system is simple, the work is more reliable, and the maintenance is more convenient.
