| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Automatic Grade: | Automatic | Driven Type: | Electric |
|---|---|---|---|
| Dimension(L*W*H): | L)3770X(W)670X(H)1450mm | Bag Width: | 30-110mm |
| Product Height: | Max.40mm | Film Roll Diameter: | Max.320mm |
| Packing Speed: | 40-230bags/min | Power Specification: | 220V,50/60HZ,2.4KW |
| Machine Size: | 3770*670*1450mm | Selling Units: | Single Item |
| Highlight: | Horizontal Bakery Biscuit Packing Machine,Automatic Bakery Biscuit Packing Machine,Automatic Biscuit Packing Machine |
||

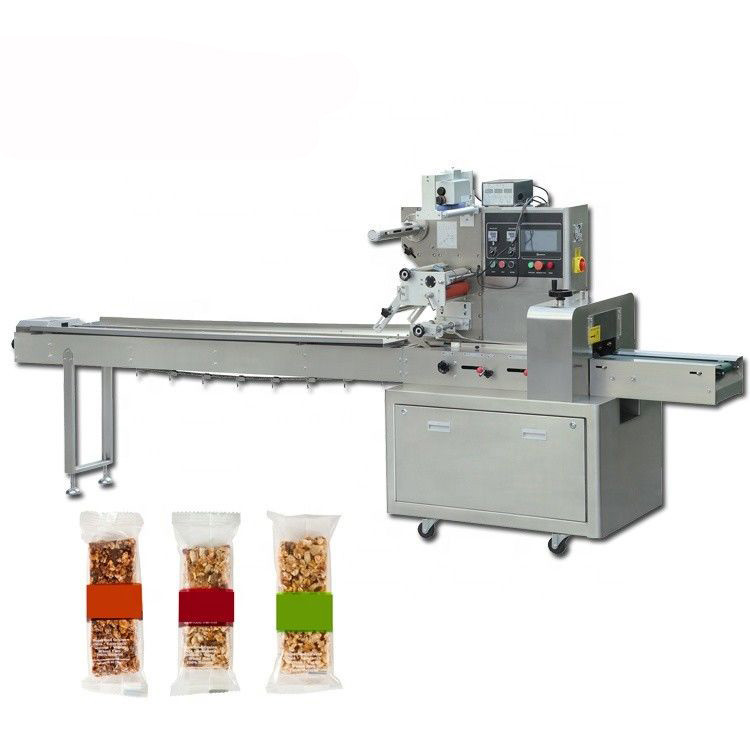

Horizontal Bakery Biscuit Packing Machine
|
Modle |
BG-250 |
BG-320 |
BG-350 |
BG-400 |
BG-450 |
BG-600 |
BG-700 |
|
Film Width |
Max.250mm |
Max.320mm |
Max.350mm |
Max.400mm |
Max.450mm |
Max.600mm |
Max.700mm |
|
Bag Length |
65-190mm |
65-190mm |
65-190mm |
130-230mm |
120-450mm |
120-450mm |
120-450mm |
|
Bag Width |
30-110mm |
30-150mm |
50-160mm |
50-180mm |
50-200mm |
80-270mm |
100-330mm |
|
Product Height |
Max.40mm |
Max.40mm |
Max.45mm |
Max.65mm |
Max.80mm |
Max.80mm |
Max.80mm |
|
Film Roll Diameter |
Max.320mm |
Max.320mm |
Max.320mm |
Max.320mm |
Max.320mm |
Max.320mm |
Max.320mm |
|
Packing Speed |
40-230 bags/min |
40-230 bags/min |
40-230 bags/min |
40-230 bags/min |
30-150 bags/min |
20-80 bags/min |
20-80 bags/min |
|
Power Specification |
220V,50/60 Hz,2.4KW |
220V,50/60 Hz,2.4KW |
220V,50/60 Hz,2.4KW |
220V,50/60 Hz,2.8KW |
220V,50/60 Hz,2.8KW |
220V,50/60 Hz,3.2KW |
220V,50/60 Hz,2.4KW |
|
Machine Size |
3770*670* 1450mm |
3770*670* 1450mm |
3770*670* 1450mm |
4020*800* 1450mm |
4020*800* 1450mm |
4380*970* 1500mm |
3770*670* 1450mm |
|
Machine Weight |
500KG |
500KG |
500KG |
600KG |
700KG |
850KG |
900KG |
Horizontal Bakery Biscuit Packing Machine features:
1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controled by program, convenient for function adjusting and upgrading.
Main Electrical configuration:
| 1. PLC | Panasonic from Japan |
| 2. Inverter | Panasonic from Japan |
| 3. Counting Sensor | Omron from Japan |
| 4. Switch Button | Schneider from German |
| 5. Terminals | Wade Miller from German |
| 6. Display Screen | WeiLun from TaiWan |
| 7. Motor | Jiangcheng from Guangdong |
| 8. Photocell | Yetai from Taiyan |
| 9. Temperature Control List | Omron from Japan |
| 10. Pushbutton Switch | Schneider from German |
| 11. Power | Ming Wei from Taiwan |
| 12. Solid State Relay | Schneider from German |
| 13. Intermediate Relay | Omron from Japan |
| 14. Two Wire Switch | Schneider from German |
