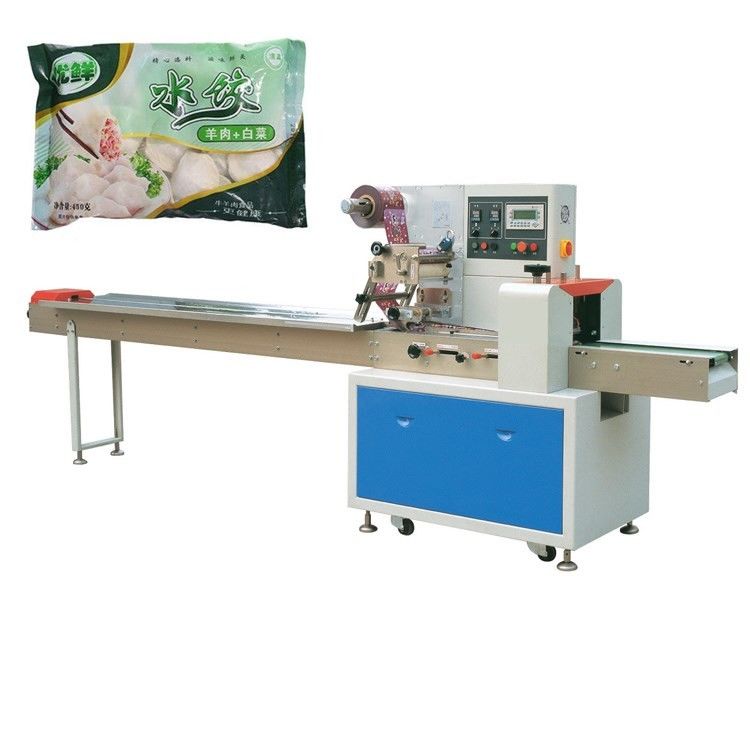

Pillow Bag Frozen Food Packing Machine

Pillow Bag Frozen Food Packing Machine

  • Pillow Bag Frozen Food Packing Machine
  • Pillow Bag Frozen Food Packing Machine
  • Pillow Bag Frozen Food Packing Machine
  • Pillow Bag Frozen Food Packing Machine
  • Pillow Bag Frozen Food Packing Machine
  • Pillow Bag Frozen Food Packing Machine
Pillow Bag Frozen Food Packing Machine
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wooden case package
Delivery Time: 15-20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month
Contact Now
Detailed Product Description
Voltage: 220V,50/60HZ, 2.4KVA Dimension(L*W*H): L3770*W670*H1450mm
Key Selling Points: Multifunction Bag Type: Pillow Bag
Bag Length: 130-450mm/150-450mm/180-580mm Bag Width: 145-185mm/185-210mm/195-285mm
Power Supply: 220V 50Hz-60Hz Packing Film Material: OPP.PE.PVC.OPP
Speed: 40-230bags/min Product Hight: Max.35/50mm
Highlight:

Pillow Bag Frozen Food Packing Machine

,

Automatic Frozen Food Packing Machine

,

2.4KW Frozen Food Packing Machine

Pillow Bag Frozen Food Packing Machine





Description



Film Width

Max.600mm

Film Width (Bag Former)

320-400mm/400-450mm/420-600mm

Bag Width

145-185mm/185-210mm/195-285mm

Bag length

130-450mm/150-450mm/180-580mm

Product High

Max.35/50mm

Packing Speed

40-230 bags/min

Packaging Film Materials

Laminate plastic Film,such as OPP/CPP/OPP/CE/MST/PE etc.

Power

2.4KW

Voltage 220V,50/60HZ

Film Roll Diameter

Max.320mm

Automatic Grade Automatic
Driven Type Electric
Control system PLC+LCD Screen



Product Application



Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.



Main Features

  • New design, beautiful appearance, more reasonable structure, more advanced technology

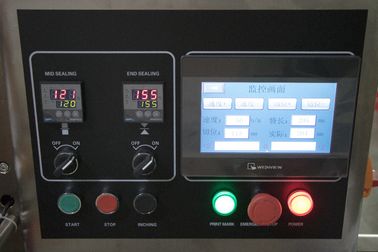

  • Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient

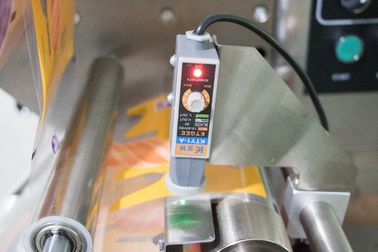

  • Imported film transport system, imported color standard sensor, accurate positioning, excellent performance, beautiful packaging

  • Multiple automatic alarm protection functions to minimize damage

  • Diversified bag shape, can provide customers with pillow bag, pocket, hole bag, joint and so on

  • Touch screen and stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting one-time completion

  • The film is controlled by servo motor to realize high precision positioning and accurate size

  • External film release mechanism is adopted to facilitate the installation of packaging film

  • Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity



Pillow Bag Frozen Food Packing Machine 0
