| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Voltage: | 220/50Hz | Dimension(L*W*H): | (L)1488*(W)1080*(H)1490mm |
|---|---|---|---|
| Key Selling Points: | High-accuracy | Material: | Stainless Steel/Painted Steel |
| Bag Type: | Pillow Bag/Gusset Bag | Max Film Width: | 420mm |
| Bag Size Can Make: | W:60-200mm L:30-300mm | Packing Material: | BOPP/CPP, BOPP/PE, PET/AL/PE, NY/PE, PAPER, PLA, NON-WOVEN FABRICS |
| Highlight: | 5kg Rice Packing Machine,Pillow Bag Rice Packing Machine,High accuracy Rice Packing Machine |
||

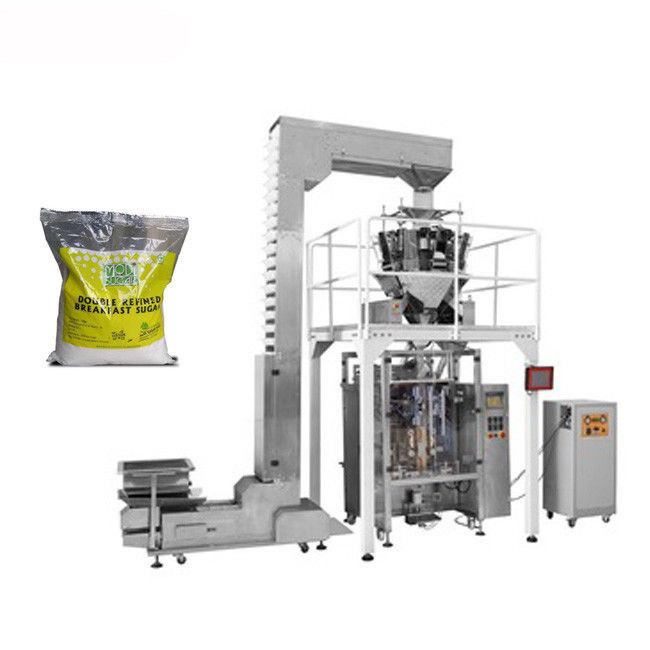

5kg Rice Packing Machine
Parameters
| No | Model | TTB - 420 | TTB - 520 | TTB - 720 |
| 1 | Film width | MAX.420mm | MAX.520mm | MAX.720mm |
| 2 | Bag size | W:60-200mm L:30-300mm | W:60-250mm L:80-350mm | W:100-340mm L:10-440mm |
| 3 | Film thickness | 0.04~0.08mm | 0.04~0.08mm | 0.06~0.12mm |
| 4 | Max weight | 1-1.5kg | 1.5-2kg | 4-5kg |
| 5 | Packaging speed | 5~50bag/min | 5~40bag/min | 5~40bag/min |
| 6 | Power | 220V 50/60Hz 2.2Kw | 220V 50/60Hz 2.5Kw | 220V 50/60Hz 2.8Kw |
| 7 | Packing material | BOPP/CPP, BOPP/PE, PET/AL/PE, NY/PE, PAPER, PLA, NON-WOVEN FABRICS | ||
| 8 | Size | L1217*W1015*H1343mm | L1488*W1080*H1490mm | L1780*W1350*H2050mm |
| 9 | Net weight | 650kg | 680kg | 750kg |
It is suitable for all kinds of stuffs packing, such as chips, candies, sugar, salt, rice, beans, nuts, coffee beans,jelly, macaroni, frozen food, pet food, screw and small parts.
Main working parts
Feeding part - Z Elevator
1. It is used for delivering the original material from bottom to the top of the weigher.
2. Main frame stainless steel 304, food contact food grade hopper.
3. Contorlled by inverter, speed is adjustable.
4. Height can be customized.
Weighing part - Combined weigher
1. It is used for weighing all kinds of products, such as rice, snack, candy, sugar, beans, chips, frozen food, sticky food, salad, pet food and etc.
2. All matierla is stainless steel 304, food grade.
3. High precision, up to 0.1%.(Depends on material)
4. English control panel, other languages can be customized.
5. Easy operation, stable, easy maintenance.
6. English manual and operation videos are provided.
Packing part - Automatic packing machine
1. It is used for turning the plastic roll film material into all kinds of packing bag.
2. Multiple bag types can be made by this machine, pillow bag, gusset bag, bag with hanging hole, four sides sealing bag and etc.
3. Main frame and food contact stainless steel 304.
4. English control panel, other languages can be customized.
5. Easy operation, stable, easy maintenance.
6. English manual and operation videos are provided.
Working platform
Material: Stainless steel
Standard size: 1800*1800*3000mm(Final size will adapeted to all equipments)
Finished product conveyor
It is used for delivering the final products to the specific place.
Deliver height: 800mm
Wattage: 0.25kw
Capacity: 50-300mm/s
Dimension: 1300*430*890mm(L*W*H)
1. What is your main products?
We provide all kinds of granule packing machine, powder packing machine and liquid packing machine.
2. What should i do for my orders?
Please share us some information of what you want to package, and it will be best by sharing us some photos of it, then we could
know exactly which of our machine is best to you.
