| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Weight: | 2200KG | Machine Type: | Sealing Machine,pouch Sealing |
|---|---|---|---|
| Voltage: | 380V | Power(w): | 5.5KW |
| Speed: | 30-70bags/min | Servo Motor: | ABB |
| Highlight: | Automatic Food Pouch Packing Machine,Snack Zipper Pouch Packing Machine,800ml Food Pouch Packing Machine |
||

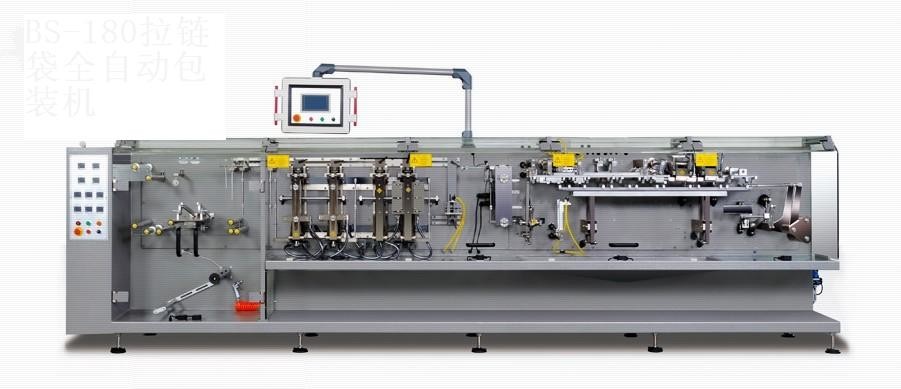

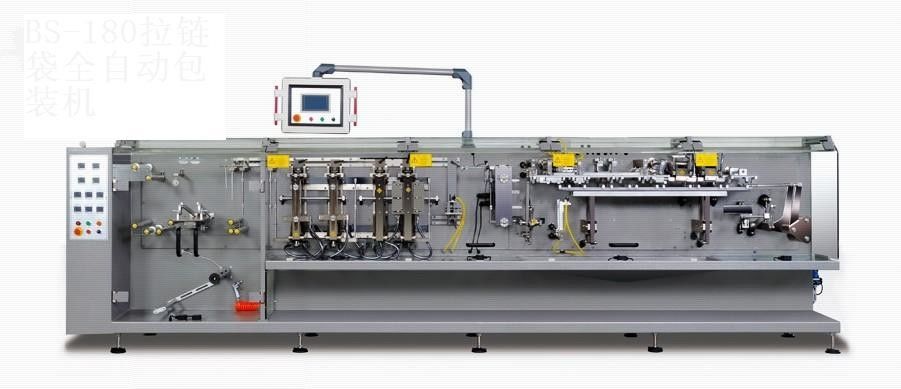

Automatic Food Pouch Packing Machine
Decription:
automatic zipper stand up pouch packing machine is suitable for packing liquid and daily using goods etc. Different filling methods can be used for different products.
Feature:
Choices for mutilple sealing types of international standard.Safety protection by mutilple layers to keep products from penetration.
Visible during the packing ,easy to learn the operation, convenient and quick to adjust package size.
The main characteristics of equipment
It is suitable for filling packing different liquid, paste and cream products such as water, oil, milk, juice, ketchup, tomato sauce, peanut butter, honey, mayonnaise, liquid detergent, shampoo, body washing and other non free-flowing liquid when equipped with different filling machines like Piston Pump Filling, Peristaltic Pump Filling, Haibar Pump Filling. With the suitable filling solution to meet the filling accuracy and packing speed requirements and avoid the liquid material bubble, forming, dripping, and splashing. The horizontal pouch packaging machine is a fully-automatic packing machine, which is widely used for food / beverage /cosmetics/chemicals/pharmaceuticals packaging. The packing material can be regular laminated film such as, PE / AL / PET PE / NY / AL / PET; CPP / NY / AL / PET.
Technical Parameter:
| Pouch Width | 110mm-240mm |
| Pouch Length | 110mm-340mm |
| Max Volume | 800ml |
| Speed | 30-70 pouch/min. |
| Accuracy | <±1.5% |
| Reel | 600mm |
| Electricity Consumption | 5.5KW |
| Air Consumption | 0.6m3/min |
| Weight | 2200KG |
| Size (L×W×H) | 5500mm×960mm×1370mm |
| Automatic Grade | Automatic |
| Application | Vegetable, Fruit, Snack, Chips Snack Coffee Bean |
