| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Packing Type: | Multi-Function Packaging Machine | Bag Type: | Pillow Bag , Gusseted Bag |
|---|---|---|---|
| Machine Body: | 304 Stainless Steel Or Carbon Steel | Controller: | PLC |
| Dosing: | Measuring Cup | Speed: | 5-70bags/min |
| Highlight: | 1000g Granule Packing Machine,Pillow Bag Granule Packing Machine,450KG Granule Packing Machine |
||

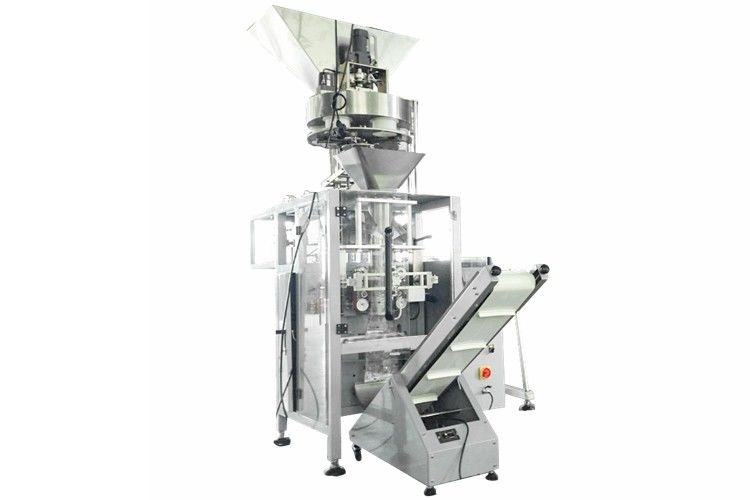

1000g Granule Packing Machine
Main features:
1:The packing machine with advanced design, reasonable structure, fine workmanship, stable adjustment, quick and easy operation, simple maintenance, time-saving and labor-saving manpower.
2.Packing machine is Full Automatic. Feeding, Dosing, Printing (Date), Filling. Bag Forming, and Sealing.
3.Packing machine can made of Carbon steel with powder coating, or Stainless Steel 304.
4:Easy operation. Most of parameter resetting by Touch Screen. Multi-language for client choose.
5:Film moving by Servo motor and a pair of belt, Horizontal and Vertical sealing temperature is independent. Make sure bag is beautiful and sealing very well.
6: Packing machine have alarming function, any wrong with it will show you soon.
Main parameters:
| Bag Length | 60-350mm(L) |
| Bag Width | 80-220mm(W) |
| Film Width | 440mm |
| Packing Speed | 5-70bags/min |
| Volume | Max 1000g |
| Air Pressure | 0.6mpa |
| Air Consumption | 0.4m³/min |
| Voltage | 2.2kw 220V 50Hz |
| VFFS Dimension | 1320x920x1392 LxWxH MM |
| Weight | 450KG |
Machine Electric and Pneumatic
1 Touch Screen ----Schneider/France
2 PLC ----Schneider/France
3 Servo Motor ----Schneider/France
4 Horizontal Cylinder ( Cross Sealing Jaws) ----AirTAC/TaiWan
5 Vertical Cylinder (Vertical Sealing Bars) ----AirTAC/TaiWan
6 Cutting Cylinder ----AirTAC/TaiWan
7 Coding Printer Cylinder ----AirTAC/TaiWan
8 Film Transport Cylinder ----AirTAC/TaiWan
9 Pressure Regulator ----AirTAC/TaiWan
10 Solenoid Valve ----AirTAC/TaiWan
11 Pneumatic FRL ----AirTAC/TaiWan
12 Solenoid Valve ----AirTAC/TaiWan
13 Photocell Sensor ----Autonics/Korea
14 Mains Switch ----Schneider/France
15 Solid-State Relay ----Fotek/ TaiWan
16 Intermediate Relay ----Schneider/France
17 Temperature Controller ----YaTai/ ShangHai
18 Proximity Switch ----LEK/GuangZhou
19 Frequency Converter ----Schneider/France
20 Leakage Protection Switch ----Delixi/China
