| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 15-20 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
| Name: | Rice Packing Machine | Feeding: | Z Type Elevator |
|---|---|---|---|
| Bag Forming: | Packing Machine | Sealing And Cutting: | Packing Machine |
| Voltage: | 220V 380V Single Phase Or Three Phases | Automatic Grade: | Full Automatic |
| Driven Type: | Electric | Type: | Multi-Function Packaging Machine |
| Packaging Type: | Pillow Bags,Pouch,Film | Application: | Food |
| Highlight: | Automatic Rice Packing Machine,Pillow Bag Rice Packing Machine,1000 ml Rice Packing Machine |
||

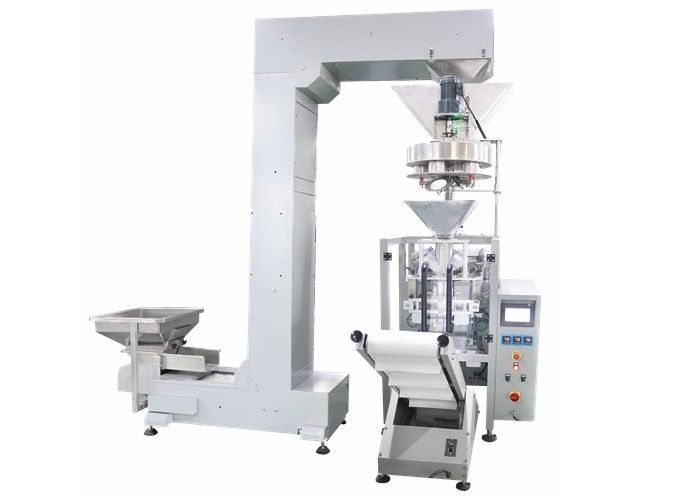

Automatic Rice Packing Machine
Function
1. Products Elevator
2. Volumetric Filler ( With Measuring Cups )
3. Packing Machine
4. Finished Product Conveyor
Feature
1. Packing machine is Full Automatic. Feeding, Dosing, Printing (Date), Filling. Bag Forming, and Sealing.
2. Packing machine can made of Carbon steel with powder coating, or Stainless Steel 304.
3: Easy operation. Most of parameter resetting by Touch Screen. Multi-language for client choose.
4: Film moving by Servo motor and a pair of belt, Horizontal and Vertical sealing temperature is independent. Make sure bag is beautiful and sealing very well.
5: Packing machine have alarming function, any wrong with it will show you soon.
| NAME | Rice Packing Machine |
| Capacity | 5-70 Bags/Min |
| Accuracy | ±0.1-2% |
| Bag Size | (L)60-300mm(W) 60-200mm |
| Film width | Max. 420mm |
| Shape Of Bag | Pillow Bag,Gusseted Bag,Linking Bag,etc. |
| Film Moving | By Double-Belts and Servo Motor |
| Volume of Each Bag | 10-1000 ml |
| Film Thickness | 0.04-0.09mm |
| Film Material | BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
| Air Consumption | 0.3m3/min |
| Air Pressure | 0.8Mpa |
| Power | 3.245 KW |
| Voltage | Single phase220V, three phase380V, 50HZ (depend on the customer’s country) |
| Air compressor | Not less than 1 CBM |
